| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,498 pcs
|
5498 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
230 pcs
|
230 pcs | On Request | 1 | On Request | On Request | 2026-02-16 00:16:00 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ADC Resolution | |
| Core | |
| Data Bus Width | |
| Data RAM Size | |
| Data Rate Max (Maximum) | |
| Halogen Free | |
| Interface Type | |
| Lead Spacing | |
| Maximum Clock Frequency | |
| Maximum Operating Temperature | |
| Maximum Supply Current | |
| Minimum Operating Temperature | |
| Mounting Style | |
| Mounting Type | |
| Number of I/Os | |
| Operating Frequency | |
| Operating Frequency (Max) | |
| Operating Frequency-Min | |
| Output Power | |
| Package Height | |
| Package Length | |
| Package Tray | |
| Package Width | |
| Program Memory Size | |
| Program Memory Type | |
| Protocols Supported | |
| Sensitivity (Typical) | |
| Supplier Device Package | |
| Supply Current Receiving | |
| Supply Current Transmitting | |
| Supply Voltage (Max) | |
| Supply Voltage (Min) | |
| Unit Weight | |
| sensitivity (Typical @ Typical) |

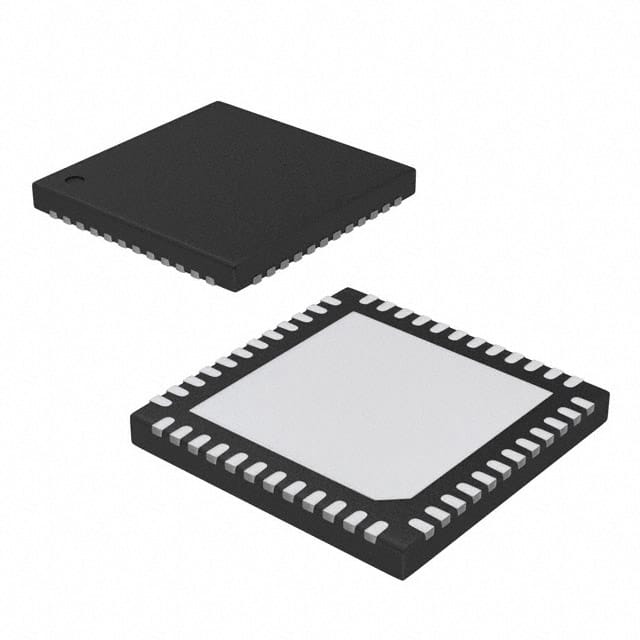

The NXP Semiconductors QN9080DHNE is an integrated circuit designed for RF and wireless applications, specifically supporting Bluetooth v5.0 (BLE) protocols. It features an ARM Cortex M4F core and a maximum clock frequency of 32 MHz, enabling efficient processing for wireless communication tasks.
This RF transceiver IC offers a maximum data rate of 16 Mbps and includes 128 kB of Data RAM and 512 kB of Flash program memory. It operates within a supply voltage range of 1.62V to 3.6V, with a maximum supply current of 0.05A. The device provides an output power of 2 dBm and a typical sensitivity of -95 dBm.
Packaged in a 48-VFQFN exposed pad, the QN9080DHNE is designed for surface mount applications. Its dimensions are 6mm x 6mm x 0.83mm. The operating temperature range is from -40°C to 85°C, making it suitable for various environmental conditions. Interface options include I2C, SPI, UART, and USB.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum data rate supported is 16 Mbps.
The maximum clock frequency is 32 MHz.
It supports Bluetooth v5.0 (BLE).
It is housed in a 48-VFQFN package.
It operates from -40°C to 85°C.
Yes, it is RoHS3 compliant.
