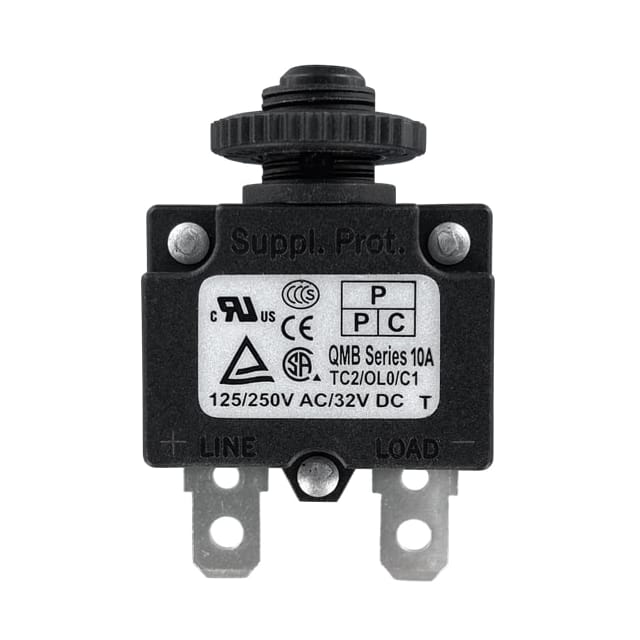

The Qualtek QMB-103-11C3N-3BA is a thermal circuit breaker designed for reliable overcurrent protection. It offers a robust 10A current rating and supports a wide voltage range of 250VAC and 32VDC.
This circuit breaker features a thermal trip mechanism and a push-to-reset actuator for convenient operation. Its panel mount design with an M11x1.0 cutout makes it suitable for integration into various enclosures and equipment. The unit is built with a plastic bushing and mounting nut, and features straight 0.250 quick disconnect terminals.
Key electrical specifications include a dielectric strength of 1500VAC for one minute, an interrupting capacity of 1000A at 125VAC, and an insulation resistance of 100M Ohms. The button color is black with white print.
Compliance information indicates RoHS3 compliance. The manufacturer also provides statements regarding REACH, EU PoP, EU Biocides, and PFAS.
The current rating is 10A.
It is rated for 250VAC and 32VDC.
This is a thermal circuit breaker.
It is designed for panel mounting.
Yes, it is RoHS3 compliant.
The interrupting capacity is 1000A at 125VAC.
It has straight 0.250 quick disconnect terminals.
