| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Panel Thickness | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

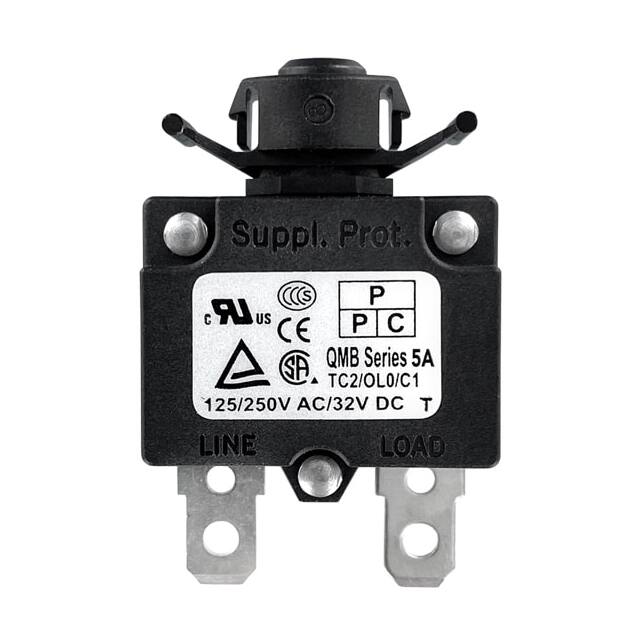

This Qualtek QMB-053-00ENN-3BA is a thermal circuit breaker with a current rating of 5A and a voltage rating of 250V AC or 32V DC. It is designed for panel mounting and features a push-to-reset actuator.
The breaker is suitable for panel thicknesses ranging from 0.8mm to 2.5mm. Approvals include UL, cUL, TUV, CCC, CE, and CSA, indicating its suitability for various applications and regions.
Key specifications include a single pole design and a thermal tripping mechanism. The button color is black with white print.
This component is ideal for applications requiring reliable overcurrent protection in a compact, panel-mountable form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 5A.
The voltage rating is 250V AC and 32V DC.
This circuit breaker is designed for panel mounting.
It is a thermal circuit breaker.
The panel thickness range is 0.8mm to 2.5mm.
