| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
164 pcs
|
164 pcs | On Request | 1 | On Request | On Request | 1726 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Weight | |
| Width |

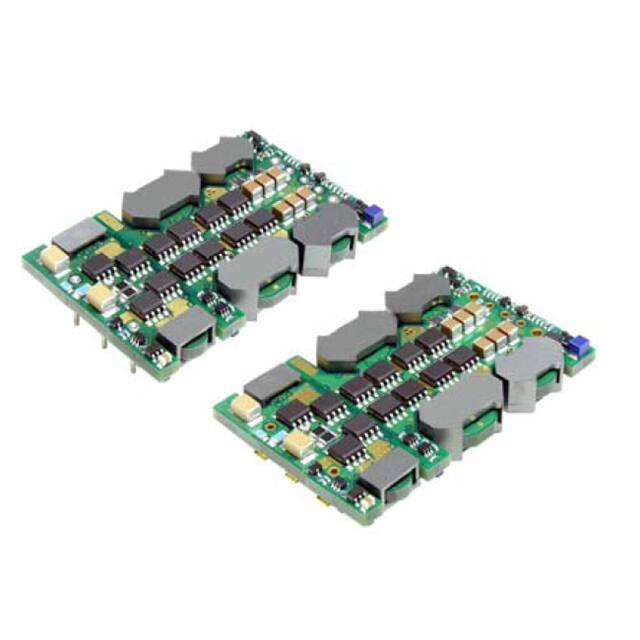

The QM48T14120-NBB0G is a DC-DC converter from Bel Power Solutions' QM-Series. It accepts an input voltage range of 36 to 75 VDC and provides a regulated 12 VDC output at up to 14 A, delivering 168 W of power. The converter achieves high efficiency of 92% typical, eliminating the need for a heat sink in many applications.
Key features include remote on/off, overcurrent protection, overvoltage protection, overtemperature protection, undervoltage lockout, and remote sense. The output can be trimmed from -20% to +10% of nominal. The converter supports start-up into pre-biased loads and requires no minimum load. It operates at fixed frequency and offers a paralleling option for higher power.
The quarter-brick package measures 58.4 mm x 36.8 mm x 9.1 mm and weighs 31.5 g. Mounting is through-hole. Safety approvals include UL60950-1, CSA60950-1, EN60950-1, and IEC60950-1. The converter is designed for telecommunications, data communications, wireless communications, and server/workstation applications.
36 to 75 VDC, nominal 48 V.
12V at 14A (168W).
Quarter brick, through-hole mounting.
-40°C to 85°C with derating.
RoHS3 compliant (unverified).
92% typical.
2000 VDC.
