| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

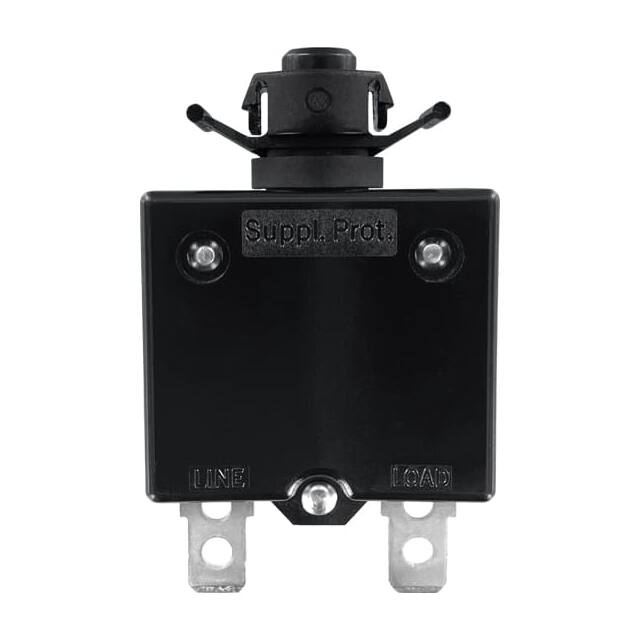

This Qualtek QLB-073-00DNN-3BA is a thermal circuit breaker with a 7A current rating suitable for 250V AC and 32V DC applications. It is designed for panel mounting and features a push-to-reset actuator.
The breaker has a single pole configuration and is designed to fit panels with a thickness ranging from 0.8mm to 2.5mm. The datasheet indicates specific panel cutout dimensions for precise integration.
Key electrical characteristics include its thermal trip mechanism, providing reliable overcurrent protection. The component is specified with RoHS3 compliance and an MSL 1 rating, indicating suitability for a wide range of manufacturing environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 7A.
It is rated for 250V AC and 32V DC.
It is a thermal circuit breaker.
It is designed for panel mounting.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
