| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

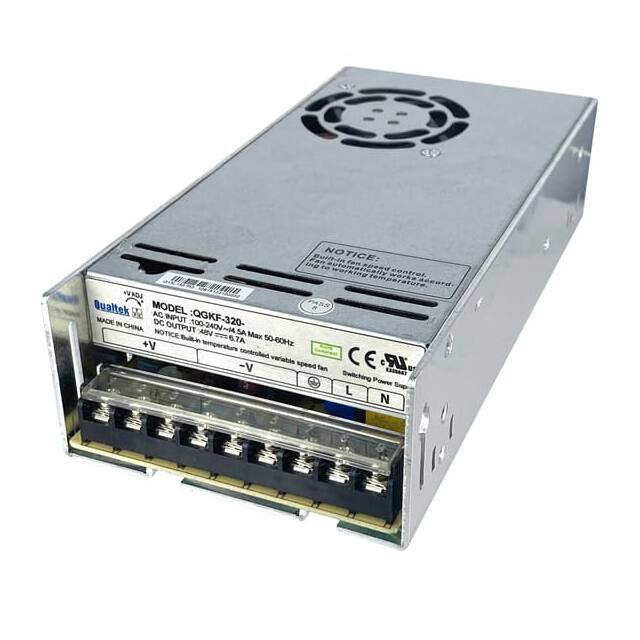

The Qualtek QGKF-320-48 is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It delivers a single 48VDC output with a maximum power of 320W and a current rating of 6.7A.
This power supply accepts a universal AC input range of 85-264VAC and features active Power Factor Correction (PFC) for improved efficiency, rated at 87.5%. It operates within a wide temperature range of -25°C to 70°C, with derating. The unit includes conformal coating on both PCB sides and a built-in DC cooling fan for enhanced reliability.
Designed for chassis mounting, the QGKF-320-48 has dimensions of 199.0mm x 99.0mm x 50.0mm. It holds approval agency certifications including CB, CE, and cURus, making it suitable for various commercial and industrial systems.
The output voltage is 48VDC.
The maximum output power is 320W.
It accepts a universal AC input range of 85-264VAC.
The operating temperature range is -25°C to 70°C, with derating.
The dimensions are 199.0mm x 99.0mm x 50.0mm.
It is designed for chassis mounting.
Yes, it features active Power Factor Correction.
