| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage |

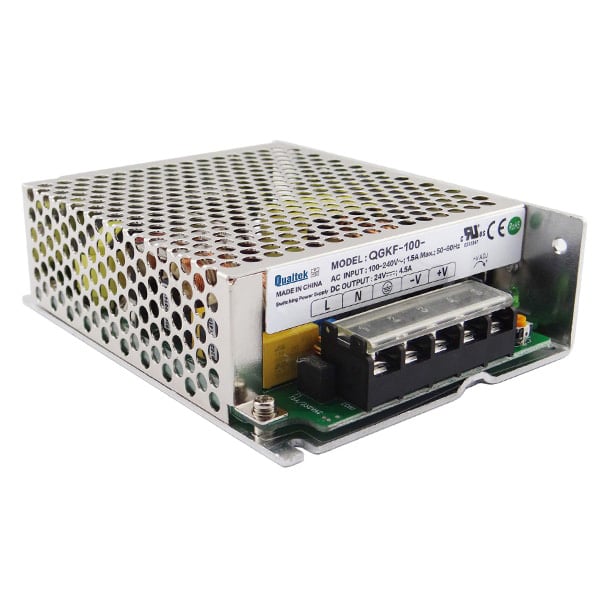

The Qualtek QGKF-100-24 is an AC/DC converter designed for ITE (Commercial) applications. This enclosed unit features conformal coating for added protection and a chassis mount for easy integration.
With an output power of 101W and a current rating of 4.2A, this converter offers adjustable output, Power Factor Correction (PFC), and universal input capabilities. It operates efficiently with an 88% efficiency rating and provides a high voltage isolation of 3 kV. The operating temperature range is -20°C to 60°C with derating.
Key specifications include dimensions of 129.0mm x 105.3mm x 37.6mm. The converter is approved by CB, CE, and cURus agencies, ensuring compliance with various safety and performance standards. It is designed with a single output.
This model is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended storage conditions. The REACH status is unaffected.
The QGKF-100-24 provides a 24V DC output.
It supplies up to 4.2A of continuous output current.
The converter is rated for 101W of total output power.
Yes, the QGKF-100-24 features universal input capability.
The unit operates reliably between -20°C and 60°C, with derating applied above 50°C.
It uses a chassis mount configuration for secure installation.
The converter holds CB, CE, and cURus approval agency certifications.
