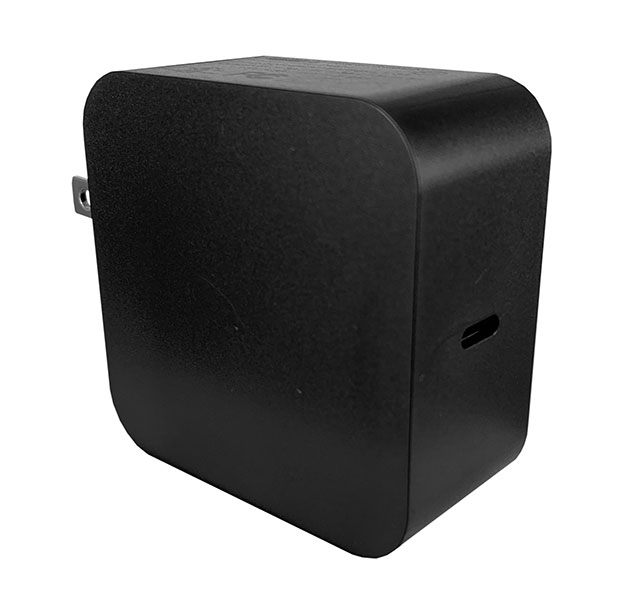

This Qualtek QFWC-45-20-USCR is a 45W AC/DC external wall mount adapter designed for ITE (Commercial) applications. It features a fixed blade input connector (NEMA 1-15P) and a USB-C output with Power Delivery (PD) capability.
The adapter provides a range of output voltages including 5V, 9V, 12V, 15V, and 20V, with corresponding maximum output currents of 3A or 2.25A. It meets Level VI efficiency standards and operates within an input voltage range of 100 to 240 VAC.
The unit is a Class II, wall-mountable adapter with dimensions of 58.0mm x 58.0mm x 29.0mm and a cord length of 1.20m. It is designed for reliable operation in North America.
Compliance includes RoHS3 and it is unaffected by REACH regulations. The operating temperature range is 0°C to 40°C.
The adapter offers output voltages of 5V, 9V, 12V, 15V, and 20V.
The maximum output current is 3A for 5V, 9V, 12V, and 15V outputs, and 2.25A for the 20V output.
The adapter has a power rating of 45W.
The adapter meets Level VI efficiency standards.
The adapter operates between 0°C and 40°C.
It uses a NEMA 1-15P input connector.
The product is RoHS3 Compliant.
