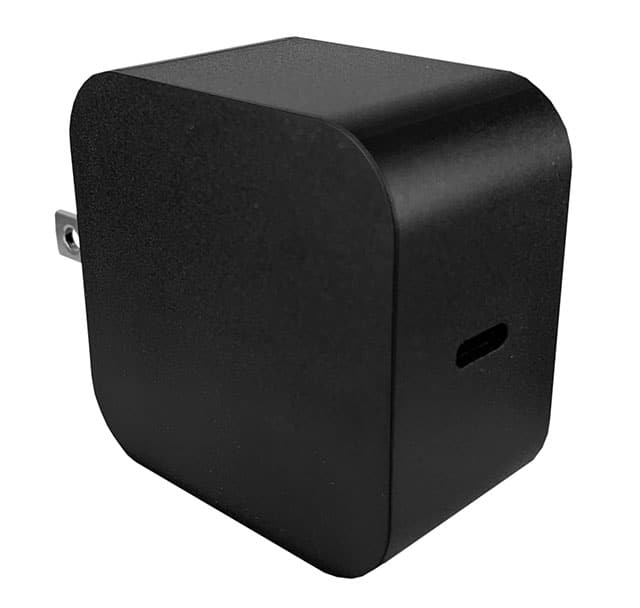

The Qualtek QFWC-18-12-USCR is a versatile 18-watt AC/DC wall adapter designed for ITE (Commercial) applications. It features a universal input voltage range of 100-240VAC and a frequency range of 50-60Hz, making it suitable for global use. The adapter provides selectable output voltages of 5V, 9V, or 12V, with corresponding current ratings of 3A, 2A, and 1.5A respectively, all delivered through a USB Type C Power Delivery (PD) connector.
This wall mount adapter meets Energy Efficiency Level VI standards and includes essential output protections such as Short Circuit Protection (SCP), Over Current Protection (OCP), and Over Voltage Protection (OVP). It operates within a temperature range of 0°C to 40°C and has dimensions of 48.0mm x 48.0mm x 28.0mm. The unit complies with EMI standards EN55032 Class B and FCC Part 15, and meets harmonic current standards EN61000-3-2, 3, along with EMS immunity compliance to IEC61000-4 series.
Designed for convenience, it features a folding NEMA 1-15P input plug for North America and a 47.2" (1.20m) cord length. The adapter is certified by cULus and FCC, ensuring safety and reliability for various commercial electronic devices.
It provides 5V, 9V, and 12V.
At 5V: 3A, at 9V: 2A, at 12V: 1.5A.
100-240VAC, 50-60Hz.
0°C to 40°C.
Wall Mount (Class II).
Short circuit protection (SCP), over current protection (OCP), and over voltage protection (OVP).
Level VI.
