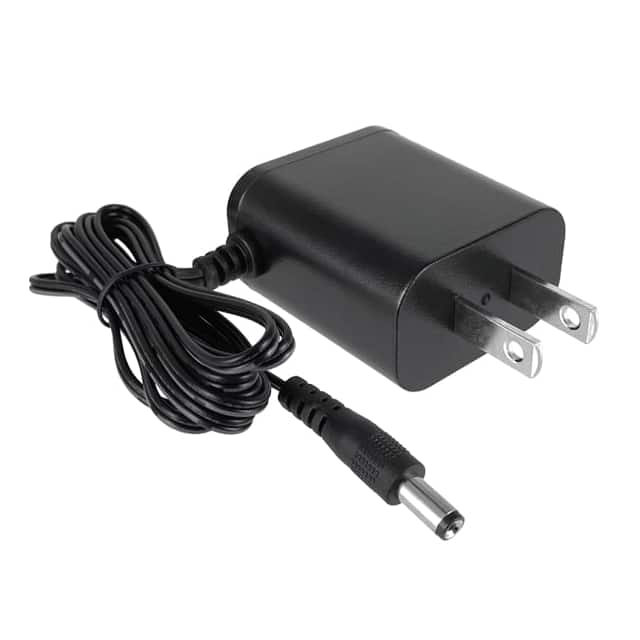

QFWB-5-5-US01

The Qualtek QFWB-5-5-US01 is a versatile AC/DC wall mount adapter delivering a stable 5V output at 1.2A, providing a total power of 6W. Designed for ITE (Commercial) applications, this adapter operates within a universal input voltage range of 100-240VAC and features a fixed blade NEMA 1-15P input connector for North American use.

This unit complies with Energy Efficiency Level VI standards, ensuring reduced energy consumption. It includes essential output protections such as Short Circuit Protection (SCP) and Over Current Protection (OCP). The adapter features a standard barrel plug output with a 2.1mm inner diameter and 5.5mm outer diameter, and a positive center polarization.

With dimensions of 39.2mm x 24.0mm x 42.0mm and a weight of 55g, it offers a compact form factor. The operating temperature range is from 0°C to 40°C. The adapter also meets various compliance standards including cULus, EN55022 Class B, FCC Part 15 Class B, and EN61000-3-2, 3 for EMI and harmonic current.

Key specifications include a ripple and noise of 200mV Max, load regulation of ±5%, and a turn-on delay of 3S Max. The MTBF is rated at 50,000 hours. This wall mount adapter is suitable for various electronic devices requiring a reliable and efficient power source.
