| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

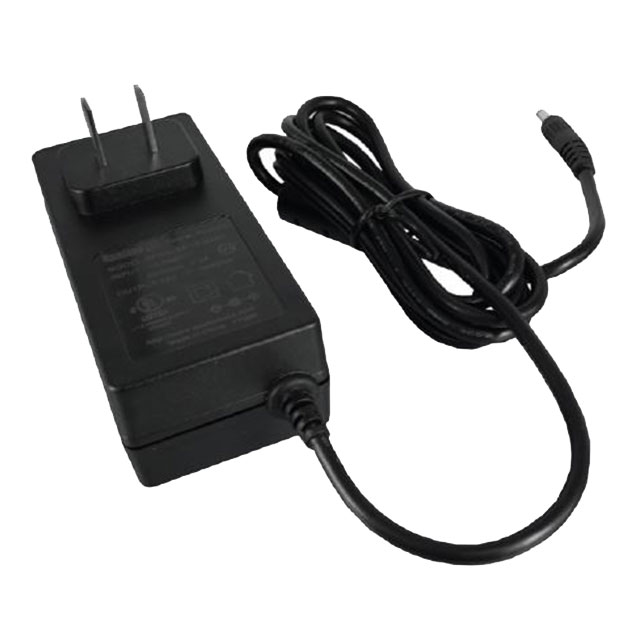

This Qualtek QFWB-36-24-US01 is a 36-watt AC/DC external wall mount adapter designed for commercial ITE applications. It features a fixed blade input and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm).
The adapter operates with a universal input voltage range of 100-240 VAC and a frequency range of 50-60 Hz. It delivers a stable 24V DC output with a maximum current of 1.5A, achieving 36W of power. The unit is designed for efficiency, meeting Level VI standards, and includes protections against short circuit and over current.
With dimensions of 97.1mm x 45.1mm x 32.0mm and a weight of 180g, it is a compact wall mount solution. The operating temperature range is 0°C to 40°C. It holds cULus approval, indicating compliance with safety standards for North American utilization.
100-240VAC at 50-60Hz.
24V at 1.5A.
0°C to 40°C.
Wall Mount (Class II).
Level VI.
cULus.
Barrel plug, 2.1mm ID x 5.5mm OD x 11.0mm.
