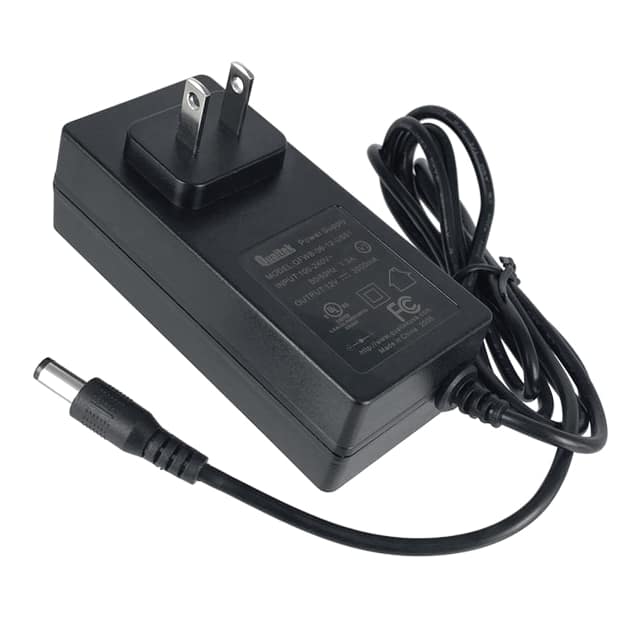

This Qualtek QFWB-36-12-US01 is a 36 Watt single output AC/DC wall mount adapter designed for ITE applications. It features a universal AC input range of 100-240VAC and operates at 50-60Hz.
The adapter delivers a stable 12V DC output with a maximum current of 3A. It boasts Level VI energy efficiency, ensuring reduced power consumption. Key electrical protections include Short Circuit Protection (SCP) and Over Current Protection (OCP).
Designed for convenience, it has a NEMA 1-15P input connector and a standard 2.1mm I.D. x 5.5mm O.D. barrel plug output connector with positive center polarization. The unit measures 97.14mm x 45.14mm x 32mm and weighs 180g. Its operating temperature range is 0°C to 40°C.
Compliance includes cULus certification, EN55022 Class B, and FCC Part 15 Class B for EMI/RFI. It also meets harmonic current standards EN61000-3-2, 3 and EMS immunity standards IEC61000-4-2, 3, 4, 5, 6, 8, 11. The MTBF is rated at 50,000 hours.
The Qualtek QFWB-36-12-US01 provides a 12V DC output at a rated current of 3A.
The adapter has a power rating of 36 Watts.
The adapter accepts a universal input voltage range of 100VAC to 240VAC.
Yes, it meets the Level VI energy efficiency standard.
It uses a Barrel Plug with dimensions of 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
The adapter measures 97.14mm in length, 45.14mm in width, and 32mm in height.
The adapter can operate in temperatures ranging from 0°C to 40°C.
