| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage |

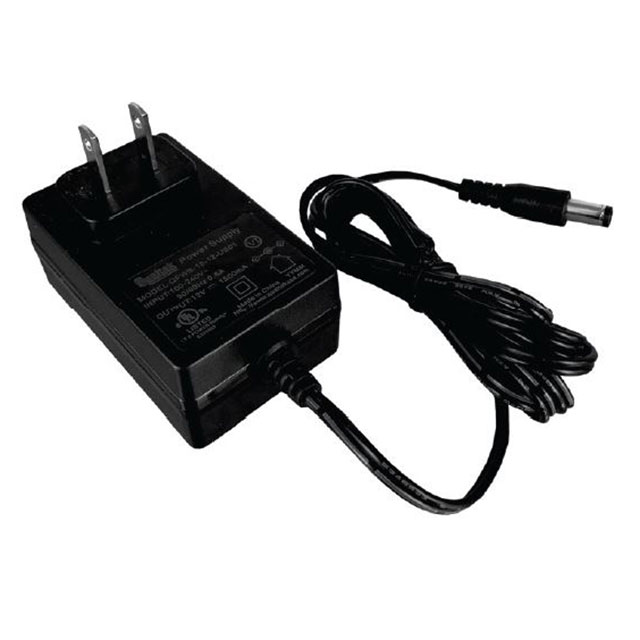

The Qualtek QFWB-18-9-US01 is a versatile 18W AC/DC wall mount adapter, providing a stable 9V output. Designed for ITE (Commercial) applications, this adapter features a NEMA 1-15P input connector and a standard 2.1mm I.D. x 5.5mm O.D. barrel plug output.
With a focus on energy efficiency, it meets Level VI standards and has a low no-load power consumption of 100mW maximum. The adapter operates within a temperature range of 0°C to 40°C and has compact dimensions of 71.3mm x 43.3mm x 28.8mm. Its fixed blade input type and positive center polarization ensure reliable power delivery.
This wall mount adapter is suitable for various commercial electronic devices requiring a regulated 9V DC power source. The 1.5-meter cord length offers flexibility in placement.
The output voltage is 9V DC.
The output current is 2A.
The power rating is 18W.
It uses a NEMA 1-15P fixed blade input connector.
It has a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, 11.0mm length.
It meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
