Mfr Part #:

QFSS-078-04.25-L-D-PC8

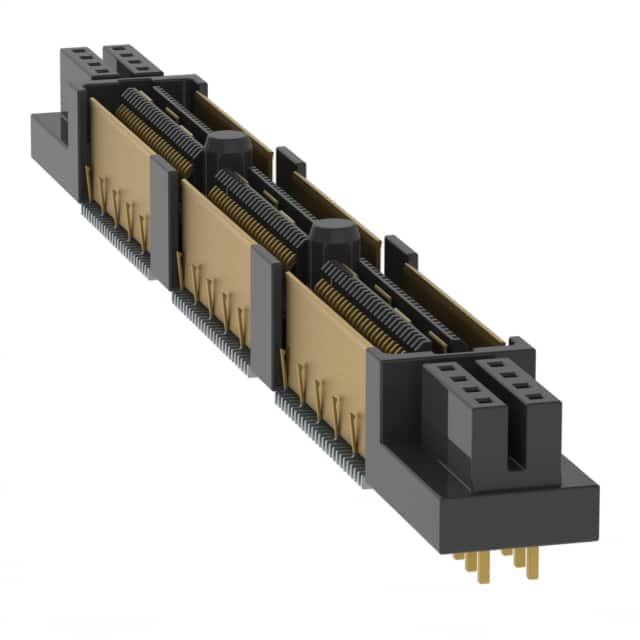

Name: QFSS-078-04.25-L-D-PC8
Brand: Samtec Inc.
SKU: QFSS-078-04.25-L-D-PC8

Mfr Name: Samtec Inc.

.635MM DOUBLE ROW SHIELDED TERMI

Stock on Request

QFSS-078-04.25-L-D-PC8 Description

Short technical summary and product information.

.635MM DOUBLE ROW SHIELDED TERMI

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Samtec Inc.

.635MM DOUBLE ROW SHIELDED TERMI

Category	Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Name	Samtec Inc.
Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10.0碌in (0.25碌m)
Features	Board Guide, Ground Bus (Plane), Power Pins (16), Shielded
Height Above Board	0.278" (7.06mm)
Mated Stacking Heights	11mm
Mounting Type	Surface Mount
Number of Positions	172 (156 + 16 Power)
Number of Rows	2
Pitch	0.025" (0.64mm)
