QFS-052-04.25-L-D-A The QFS-052-04.25-L-D-A is a 104-position high-speed ground plane receptacle from Samtec. It features a 0.64mm pitch, surface mount termination, gold contact finish, and is rated for 2.6A per pin and 300 VAC.
Mfr Part #:

QFS-052-04.25-L-D-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The QFS-052-04.25-L-D-A is a 104-position high-speed ground plane receptacle from Samtec. It features a 0.64mm pitch, surface mount termination, gold contact finish, and is rated for 2.6A per pin and 300 VAC.
✓ Total Stock: 5 pcs
$ Price Range: $9.75 - $15.18

QFS-052-04.25-L-D-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QFS-052-04.25-L-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Features
Halogen Free
Height Above Board
Insulator Material
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
SVHC Present
Tape & Reel
Type
Voltage Rating
View Similar Products (0)

QFS-052-04.25-L-D-A Description

Short technical summary and product information.

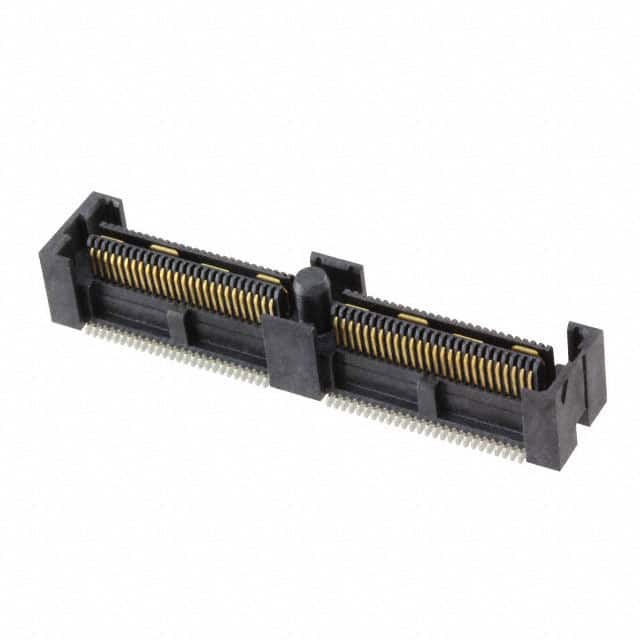

The QFS-052-04.25-L-D-A is a 104-position high-speed ground plane receptacle from Samtec's QFS series. This connector features a 0.64mm (0.025") pitch, 2 rows, and surface mount termination. Contacts are gold-plated with 10µin (0.25µm) thickness over nickel, ensuring reliable signal integrity. The insulator is made of liquid crystal polymer (LCP), and contacts are phosphor bronze.



This receptacle is designed for mezzanine board-to-board applications with mated stacking heights of 10mm, 11mm, or 14mm. It includes a board guide and integrated ground bus (plane) for improved EMI performance. Electrical ratings include 2.6A per contact (2 pins powered) and 15.7A per ground plane, with a voltage rating of 300 VAC. The operating temperature range spans -55°C to +125°C.



The QFS-052-04.25-L-D-A is a single-ended type (type -D) with a lead style of -04.25 and plating option -L (10µin gold on contact, matte tin on tail). It is lead-free solderable and packaged in trays of 52 units. This connector supports high-speed protocols up to 25 Gbps NRZ, making it suitable for applications such as PCIe, USB, and Ethernet.

QFS-052-04.25-L-D-A Quick Information

Product Type: High-Speed Ground Plane Receptacle
Series: QFS-PC
Canonical Name: QFS-052-04.25-L-D-A - .635mm High-Speed Ground Plane Receptacle, 104 Pin, Single-Ended, Gold Plating
Subcategory: High-Speed Ground Plane Connector

QFS-052-04.25-L-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable: Yes

QFS-052-04.25-L-D-A Estimated Pricing

Qty Low High
1+ $15.18 $15.18
52+ $13.78 $13.78
104+ $10.02 $10.02
260+ $9.75 $9.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

QFS-052-04.25-L-D-A Features

  • 104 positions on 0.64mm pitch.
  • Surface mount termination for easy assembly.
  • Gold contact finish for reliability.
  • Integrated ground plane for signal integrity.
  • Rated for 300 VAC and 2.6A per pin.

QFS-052-04.25-L-D-A Applications

  • Ideal for high-speed mezzanine board stacking.
  • Used in data center switch fabrics.
  • Suitable for PCIe and Ethernet protocols.
  • Designed for rugged power systems.
  • Supports board-to-board connections up to 14mm height.

QFS-052-04.25-L-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the QFS-052-04.25-L-D-A have?

104 positions.

What is the pitch of the QFS-052-04.25-L-D-A?

0.64mm (0.025").

What is the current rating of the QFS-052-04.25-L-D-A?

2.6A per contact (2 pins powered) and 15.7A per ground plane.

What is the voltage rating of the QFS-052-04.25-L-D-A?

300 VAC.

What is the mounting type of the QFS-052-04.25-L-D-A?

Surface Mount.

What is the operating temperature range?

-55°C to +125°C.

What are the mated stacking heights?

10mm, 11mm, and 14mm.
