Mfr Part #:

QFS-026-04.25-H-D-PC8

Name: QFS-026-04.25-H-D-PC8
Brand: Samtec Inc.
SKU: QFS-026-04.25-H-D-PC8

Mfr Name: Samtec Inc.

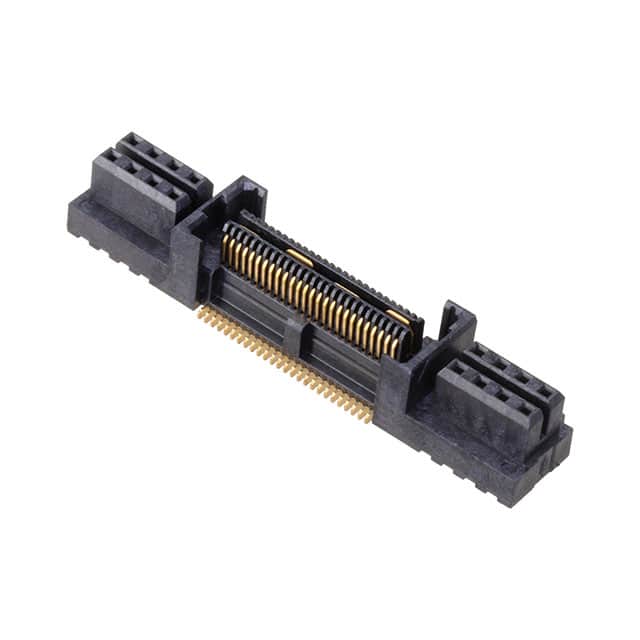

CONN RCPT 52POS SMD GOLD

Stock on Request

QFS-026-04.25-H-D-PC8 Description

Short technical summary and product information.

CONN RCPT 52POS SMD GOLD

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Samtec Inc.

CONN RCPT 52POS SMD GOLD

Category	Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Name	Samtec Inc.
Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	30.0碌in (0.76碌m)
Features	Ground Bus (Plane), Power Pins (16)
Height Above Board	0.278" (7.06mm)
Mated Stacking Heights	10mm, 11mm, 14mm
Mounting Type	Surface Mount
Number of Positions	68 (52 + 16 Power)
Number of Rows	2
Pitch	0.025" (0.64mm)
