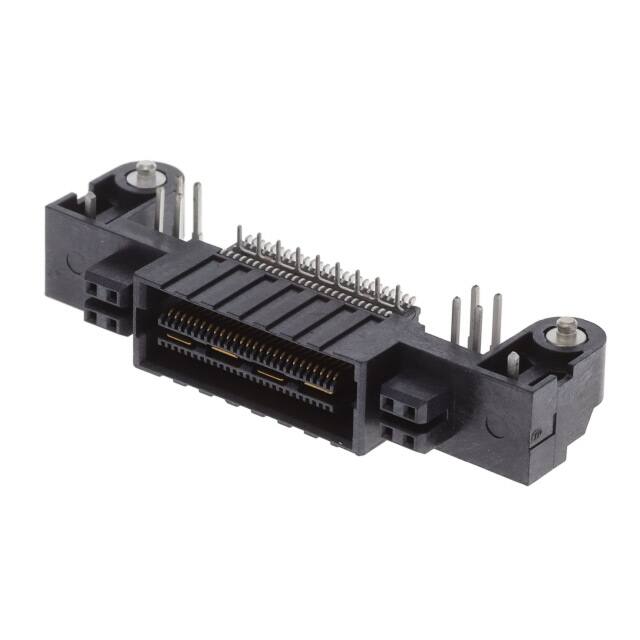

The Samtec QFS-026-01-SL-D-RA-PC4 is a high-speed ground plane receptacle from the QFS-RA series. It offers 60 positions total, comprising 52 signal contacts and 8 power pins, arranged in 2 rows on a 0.64mm (0.025") pitch. The connector features a right angle surface mount design with gold contact finish (10.0µin) for reliable connectivity.
This receptacle includes a ground bus (plane) to enhance signal integrity, making it suitable for high-speed digital applications. It is rated with a Channel Performance Metric (CPM) of 25 Gbps NRZ, supporting protocols such as PCIe 4.0/5.0, USB 10/20 Gbps, and Ethernet 25 Gbps. The connector is packaged in trays with 32 parts per package, and alternative packaging options (bulk and tape & reel) are available.
Designed for mezzanine board-to-board connections, the QFS-026-01-SL-D-RA-PC4 provides a compact, high-density interconnect solution. Its right angle orientation allows for space-saving layouts in systems requiring high-speed data transmission.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.27 | $25.27 |
| 10+ | $25.26 | $25.26 |
| 25+ | $23.01 | $23.01 |
| 96+ | $18.55 | $18.55 |
| 256+ | $17.45 | $17.45 |
| 512+ | $17.44 | $17.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions total: 52 signal positions and 8 power positions.
0.64mm (0.025 inches).
Surface mount, right angle.
Gold, 10.0µin (0.25µm) thickness.
25 Gbps NRZ.
Ground bus (plane) and 8 power pins.
Tray (32 parts per package). Also available in bulk and tape & reel variants.
