| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,250 pcs
|
1250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Chip Material | |
| Current | |
| Emission Angle (Typical @ IF = 100 mA) | |
| Fall Time | |
| Forward Voltage (Maximum @ IF = 20 mA, tp = 20 ms) | |
| Junction Capacitance | |
| Matched Photosensor | |
| Mounting Type | |
| Operating Temperature | |
| Orientation | |
| Peak Emission Wavelength | |
| Peak Forward Current | |
| Power Dissipation | |
| Radiant Intensity (Ie) Min @ If | |
| Radiant Intensity (Minimum @ IF = 20 mA, tp = 20 ms) | |
| Reverse Current | |
| Reverse Voltage | |
| Rise Time | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

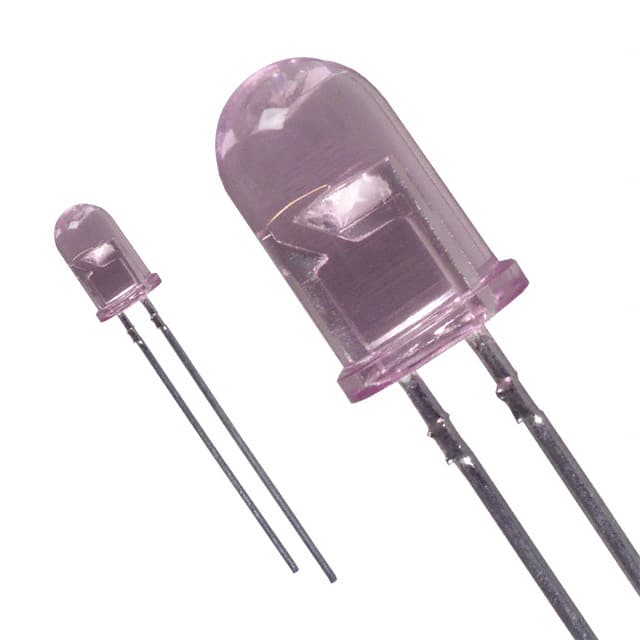

The QED223 from On Semiconductor is a plastic infrared light-emitting diode designed for various applications requiring 880nm wavelength light. Encapsulated in a clear, purple-tinted T-1 3/4 package, this LED offers a medium wide emission angle of 30° and high output power.
Key electrical characteristics include a typical forward voltage of 1.7V at 20mA and a minimum radiant intensity of 25mW/sr at 100mA. The operating temperature range is -40°C to 100°C. The LED has a continuous forward current rating of 100mA and a reverse voltage rating of 5V.
This component is suitable for applications where infrared light emission is required. Its through-hole mounting type and standard T-1 3/4 package make it easy to integrate into circuit boards. The matched photosensor series includes QSD123/QSD124.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak emission wavelength is 890nm.
The typical forward voltage is 1.7V.
The operating temperature range is -40°C to 100°C.
The QED223 is supplied in a T-1 3/4 package.
The RoHS status is RoHS3 Compliant.
