| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Topology | |
| Voltage | |
| Width |

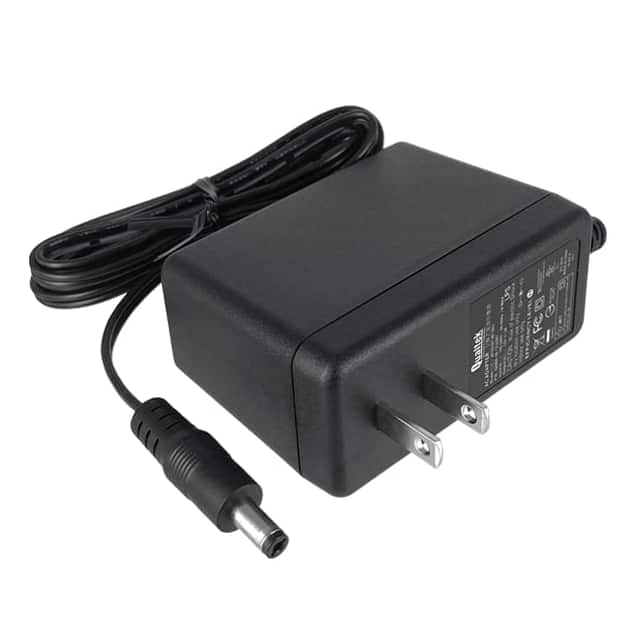

The Qualtek QAWA-36-12-US01 is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output at a maximum current of 3A, providing a total power of 36W.
This adapter meets stringent energy efficiency requirements, achieving Level VI certification, along with compliance to ErP Step 2, NRCan, and GEMS standards. It operates within a universal input voltage range of 100VAC to 240VAC at 50Hz-60Hz, utilizing a standard NEMA 1-15P input connector for North American compatibility.
Key features include over-voltage, short-circuit, and over-current protection for enhanced safety. The output connector is a standard barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter. The unit operates reliably in temperatures ranging from 0°C to 40°C and has a low no-load power consumption of less than 100mW.
With its compact dimensions (79.0mm x 34.0mm x 74.0mm) and wall-mount form factor, the QAWA-36-12-US01 is suitable for various space-constrained designs. It also boasts a Mean Time Between Failures (MTBF) of 300,000 hours at 25°C.
12V DC.
3A.
36W.
Level VI (DoE Level VI, Energy Star, ErP Step 2, NRCan & GEMS).
0°C to 40°C.
Wall Mount (Class II).
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm, positive center.
