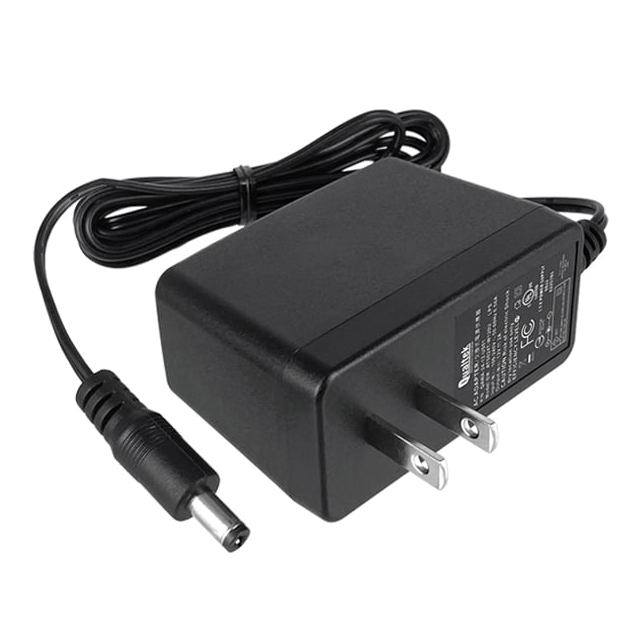

This Qualtek QAWA-24-5-US01 is an AC/DC wall mount adapter designed for commercial ITE applications. It delivers a stable 5V output with a maximum current of 4A, providing a total power of 20W. The adapter features a NEMA 1-15P input connector suitable for North American outlets and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization.
With an efficiency rating of Level VI and a low no-load power consumption of 100mW (Max), this adapter is energy-efficient. It operates within a temperature range of 0°C to 40°C. The dimensions are 72.0mm in length, 34.0mm in width, and 52.0mm in height. The integrated cord measures 59 inches (1.50m) in length.
The adapter is compliant with RoHS3 standards and is unaffected by REACH regulations. It is classified as Moisture Sensitivity Level 1 (Unlimited). This Class II device is approved by multiple agencies including BSMI, CB, CCC, CE, cULus, FCC, GS, and PSE, ensuring broad market acceptance.
The output voltage is 5V DC.
The maximum output current is 4A.
The power rating is 20W.
The operating temperature range is 0°C to 40°C.
It is a wall mount (Class II) adapter.
It has a fixed blade NEMA 1-15P input connector.
The output is a barrel plug with 2.1mm ID and 5.5mm OD.
