| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Topology | |
| Voltage | |
| Voltage Range | |
| Width |

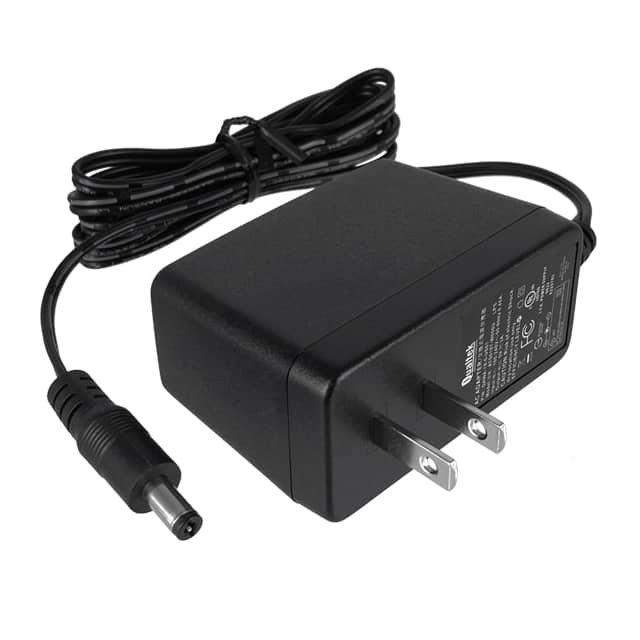

The Qualtek QAWA-18-5-US01 is a versatile AC/DC wall mount power adapter designed for ITE (Commercial) applications. It delivers a stable 5V output at a maximum current of 3A, providing a total power of 15W.
This adapter meets stringent energy efficiency requirements, achieving Level VI certification. It operates within a universal input voltage range of 100-240VAC and features a fixed blade input connector suitable for North America (NEMA 1-15P).
The output is delivered via a standard barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, featuring a positive center pin. The unit is designed for wall mounting and operates reliably within an ambient temperature range of 0°C to 40°C. It includes essential output protections such as Over Voltage Protection (OVP), Short Circuit Protection (SCP), and Over Current Protection (OCP).
With a cord length of 1.50 meters (59 inches) and compact dimensions of 72.0mm x 34.0mm x 52.0mm, this adapter offers convenience and flexibility in deployment. It also boasts a low no-load power consumption of 100mW maximum.
The QAWA-18-5-US01 provides a 5V output at 3A.
The adapter has a power rating of 15W.
This adapter meets Level VI energy efficiency standards.
The adapter operates within a temperature range of 0°C to 40°C.
It uses a barrel plug with a 2.1mm inner diameter, 5.5mm outer diameter, and a positive center pin.
The adapter supports a universal input voltage range of 100VAC to 240VAC.
