| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

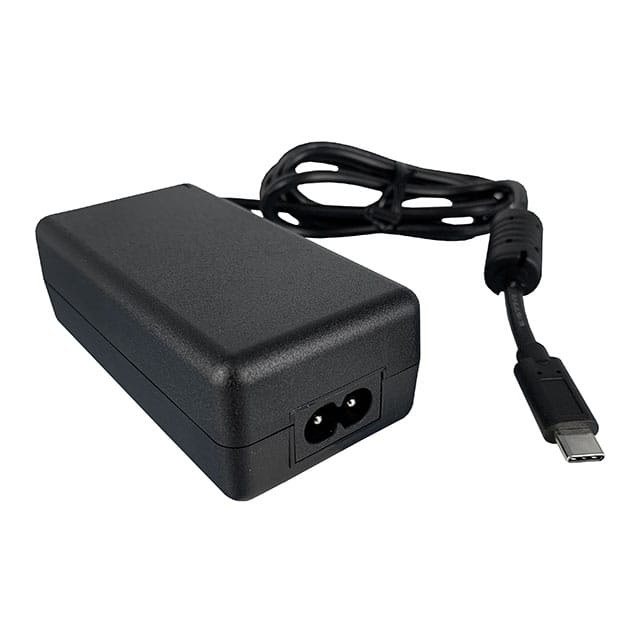

The Qualtek QADC-45-20-08CB is a 45-watt AC/DC desktop power adapter designed for ITE (Commercial) applications. It provides a stable 20V output with a maximum current of 2.25A.
This adapter meets Level VI efficiency standards, ensuring optimal energy usage. It features an IEC 320-C8 input connector and a USB C output connector. The operating temperature range is from 0°C to 40°C.
The unit has a compact desktop form factor (Class II) with dimensions of 99.0mm x 49.9mm x 32.8mm. It requires a cord, which is sold separately, and has a cord length specification of 1.00m.
Compliance includes BSMI, CB, CE, cULus, FCC, GS, PSE, and RCM approvals. The RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level is 1, and REACH status is Unaffected.
The adapter provides a 20V output voltage with a maximum current of 2.25A.
The power rating is 45W.
The adapter meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
It features an IEC 320-C8 input connector and a USB C output connector.
The dimensions are 99.0mm in length, 49.9mm in width, and 32.8mm in height.
The RoHS status is RoHS3 Compliant.
