| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

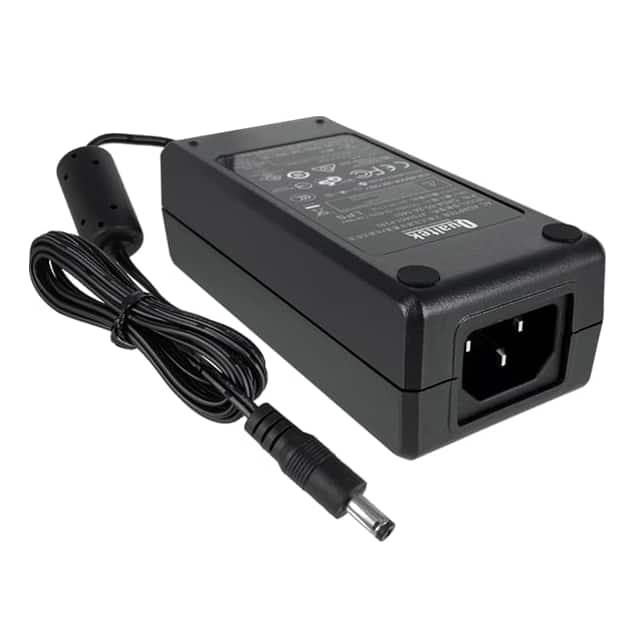

This Qualtek QADA-65-48-0801 is a 65-watt AC/DC external desktop adapter, classified as Class II. It operates with a universal AC input range of 100-240VAC and a frequency of 50-60Hz, making it suitable for international applications.
The adapter provides a stable 48V DC output at a maximum current of 1.36A. It features essential output protections including Over Voltage Protection (OVP), Short Circuit Protection (SCP), and Over Current Protection (OCP). The unit is designed with an IEC 60320 C8 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm). It also includes a positive center polarization.
Meeting stringent energy standards, this adapter boasts Level VI efficiency and has a low no-load power consumption of 210mW maximum. The operating temperature range is from 0°C to 40°C. Its compact dimensions are 115.0mm x 53.0mm x 38.0mm, and it weighs 310g. The cord length is 59 inches (1.50m) and is sold separately.
Compliance agencies include BSMI, CB, CCC, CE, cULus, FCC, GS, and PSE, ensuring broad market acceptance. The adapter is built for reliability with an MTBF of 300,000 hours at 25°C.
The adapter provides a 48V DC output at a maximum current of 1.36A.
This adapter has a power rating of 65W.
Yes, it meets Level VI energy efficiency standards.
The adapter uses an IEC 60320 C8 input connector.
The dimensions are 115mm x 53mm x 38mm.
The operating temperature range is from 0°C to 40°C.
