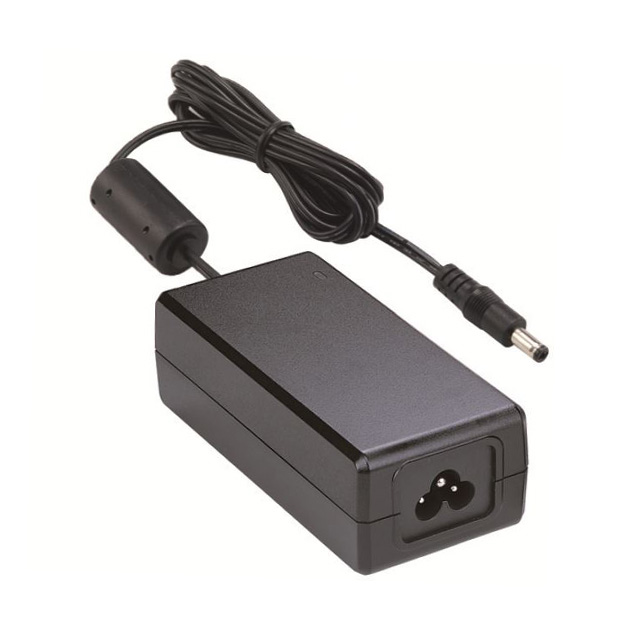

The Qualtek QADA-50-9-1401 is an AC/DC external desktop adapter designed for versatile power applications. It delivers a stable 9V output with a maximum current of 5A, providing a total power of 45W. This adapter meets the stringent Level VI efficiency requirements, ensuring optimal energy usage.
Featuring a Class I form factor, the QADA-50-9-1401 utilizes an IEC 320-C14 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm). Its compact dimensions of 115.0mm x 53.0mm x 38.0mm make it suitable for various integration needs. The adapter operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 210mW maximum.
The input voltage range is 100 to 240 VAC, making it suitable for international use. The cord is sold separately, and the polarization is positive center. This model is part of the QADA-50 series, known for its reliable performance and compliance with global standards, including BSMI, CB, CCC, CE, cULus, FCC, GS, and PSE approvals.
The QADA-50-9-1401 adapter has an output voltage of 9V and a maximum output current of 5A.
The QADA-50-9-1401 adapter has a power rating of 45W.
The QADA-50-9-1401 adapter meets Level VI efficiency standards.
The input voltage range for the QADA-50-9-1401 adapter is 100 to 240 VAC.
The QADA-50-9-1401 adapter uses an IEC 320-C14 input connector.
The dimensions of the QADA-50-9-1401 adapter are 115.0mm x 53.0mm x 38.0mm.
The operating temperature range for this adapter is 0°C to 40°C.
