| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

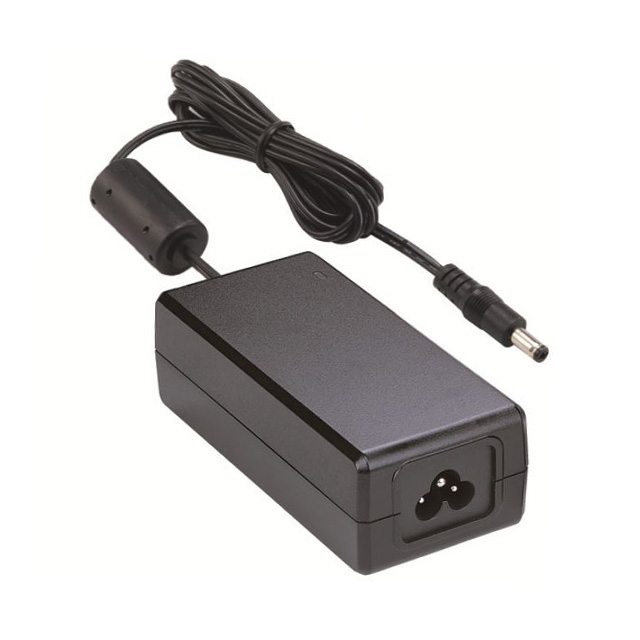

The Qualtek QADA-50-12-1402 is a 50W AC/DC external desktop adapter designed for international use. It provides a stable 12V output at a maximum current of 4.2A.
This adapter meets Level VI efficiency standards and operates within a wide input voltage range of 100 to 240 VAC. It features an IEC 320-C14 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm). The adapter has a Class I form factor and dimensions of 115.0mm x 53.0mm x 38.0mm.
Key specifications include a low no-load power consumption of 210mW (Max) and a cord length of 1.50m. The operating temperature range is 0°C to 40°C. It is RoHS3 compliant and has a REACH Unaffected status. The input cord is sold separately.
The QADA-50-12-1402 adapter has an output voltage of 12V and a maximum output current of 4.2A.
The power rating of the QADA-50-12-1402 adapter is 50W.
The adapter supports an input voltage range of 100 to 240 VAC.
The adapter meets Level VI efficiency standards.
The adapter uses an IEC 320-C14 input connector.
The dimensions of the adapter are 115.0mm x 53.0mm x 38.0mm.
The operating temperature range is 0°C to 40°C.
