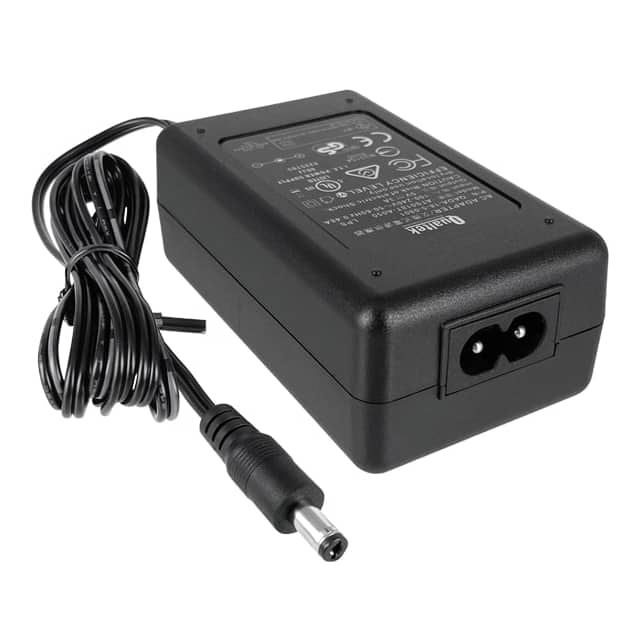

The Qualtek QADA-18-5-0801 is a versatile 15-watt AC/DC desktop power adapter designed for international use. It provides a stable 5V DC output at a maximum current of 3A, making it suitable for a wide range of electronic devices.
This adapter meets Energy Efficiency Level VI standards, ensuring reduced power consumption during operation and standby. It features a universal input voltage range of 100VAC to 240VAC and a 50Hz-60Hz frequency range, compatible with power grids worldwide. The input connector is an IEC 320-C8 type, and the output is delivered via a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarity.
Designed for reliability, the QADA-18-5-0801 includes essential output protections such as Over Voltage Protection (OVP), Short Circuit Protection (SCP), and Over Current Protection (OCP). It operates within an ambient temperature range of 0°C to 40°C and has a typical MTBF of 300,000 hours at 25°C.
With its compact dimensions of 88.0mm x 50.0mm x 34.0mm and a weight of 144g, this desktop adapter is an efficient and compliant power solution for various applications.
The input voltage range is 100-240VAC at 50-60Hz.
The output is 5V DC at up to 3A, providing 15W of power.
It is a desktop (Class II) adapter with an IEC 60320 C8 input connector and a 2.1mm barrel plug output.
The operating temperature range is 0°C to 40°C.
It includes over voltage, short circuit, and over current protection.
It meets Level VI efficiency and consumes less than 0.1W under no load.
It is approved by BSMI, CB, CCC, CE, cULus, FCC, GS, PSE, and RCM.
