| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
740 pcs
|
740 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Transfer Ratio (Max) | |
| Current Transfer Ratio (Min) | |
| Forward Current | |
| Forward Voltage | |
| Input Type | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Current | |
| Output Type | |
| Rise | |
| Supplier Device Package | |
| Tape & Reel | |
| Vce Saturation (Max) | |
| Voltage |

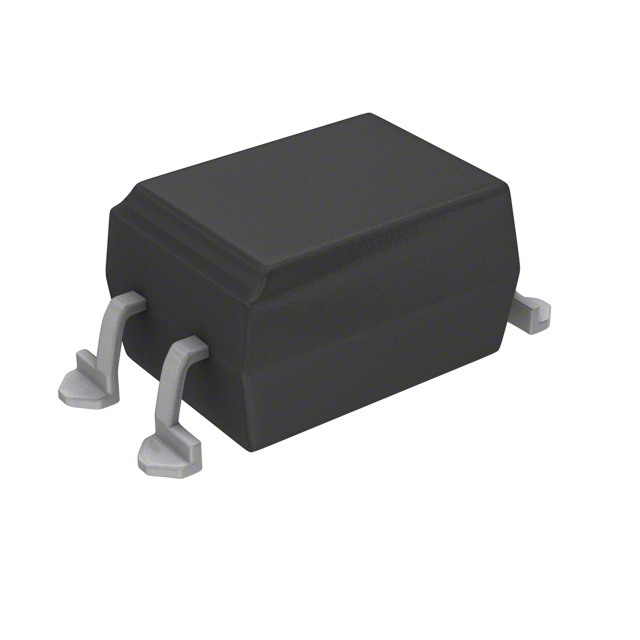

The QT Brightek Q817CST1 is a 4-pin DC input optocoupler designed for isolation applications. It features a transistor output and provides a high isolation voltage of 5000Vrms.
Key electrical specifications include a maximum output current of 50mA and a maximum DC forward current of 60mA. The typical forward voltage is 1.24V at 5mA, with a Vce saturation of 200mV maximum. Current transfer ratios range from a minimum of 200% to a maximum of 400% at 5mA. The device has typical rise and fall times of 6µs and 8µs, respectively.
This optocoupler is housed in a 4-SMD, Gull Wing package, suitable for surface mounting. It operates reliably within a wide temperature range of -55°C to 110°C.
The Q817CST1 is part of the Q817 series and is designed for applications requiring electrical isolation between input and output circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Q817CST1 optocoupler has an isolation voltage of 5000Vrms.
The Q817CST1 operates between -55°C and 110°C.
The Q817CST1 is supplied in a 4-SMD, Gull Wing package.
The typical forward voltage for the Q817CST1 is 1.24V at 5mA.
The minimum current transfer ratio for the Q817CST1 is 200% at 5mA.
