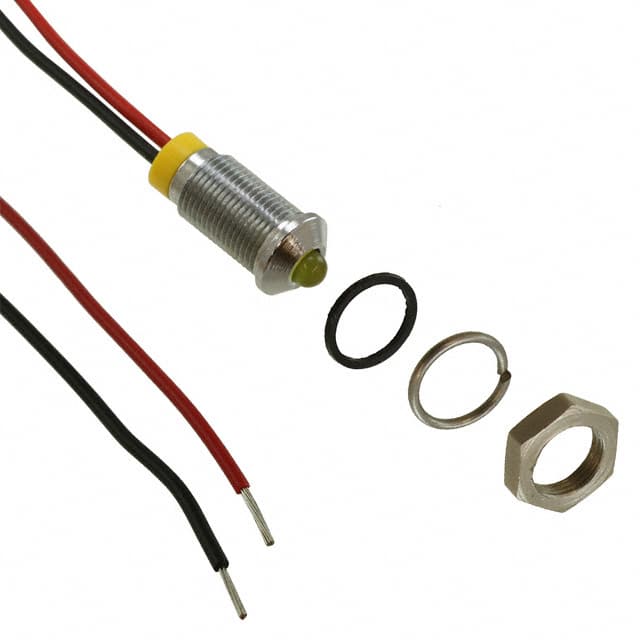

Q6P7CXXY02E The APEM Inc. Q6P7CXXY02E is a yellow LED panel indicator featuring a 3mm diffused lens and IP67 sealing. It operates at 2V with a 20mA current rating.
Mfr Part #:

Q6P7CXXY02E

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. Q6P7CXXY02E is a yellow LED panel indicator featuring a 3mm diffused lens and IP67 sealing. It operates at 2V with a 20mA current rating.
✓ Total Stock: 5 pcs
$ Price Range: $0.99

Q6P7CXXY02E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

Q6P7CXXY02E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Forward Voltage
Ingress Protection
Insulation Resistance
Lamp Color
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Panel Cutout Dimensions
Panel Cutout Shape
Ratings
Storage Temperature
Tape & Reel
Termination Style
Torque
Type
Viewing Angle
Voltage
View Similar Products (0)

Q6P7CXXY02E Description

Short technical summary and product information.

This APEM Inc. Q6P7CXXY02E is a panel mount LED indicator from the Q6 series, designed for clear visual signaling. It features a prominent, diffused yellow lens with a 3mm diameter and a 100° viewing angle, providing a typical luminous intensity of 30mcd.



The indicator has a yellow lamp color and a rated operating voltage of 2V with a typical operating current of 20mA. It is built with a plated brass bezel and a polycarbonate rear body, offering a robust construction. The unit is sealed to IP67 standards, ensuring protection against dust and water ingress.



Mounting is facilitated through a standard 0.24" (6.10mm) round panel cutout. The termination style consists of wire leads, each 7.87" (200.00mm) long. The operating temperature range for the rear plastic body is -30°C to +65°C, and for the rear epoxy body, it is -40°C to +85°C. The maximum panel thickness it can accommodate is 7mm.

Q6P7CXXY02E Quick Information

Product Type: LED Indicator
Series: Q6
Canonical Name: APEM Inc. Q6 Series Ø6 mm Panel Mount LED Indicator
Subcategory: Panel Mount LED Indicators

Q6P7CXXY02E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

Q6P7CXXY02E Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

Q6P7CXXY02E Features

  • Yellow diffused 3mm LED lens.
  • IP67 rated for environmental protection.
  • Panel mount with wire lead termination.
  • Operates at 2V with 20mA current.
  • Wide temperature range for diverse applications.

Q6P7CXXY02E Applications

  • Ideal for status indication panels.
  • Suitable for industrial control systems.
  • Used in equipment monitoring applications.
  • Provides clear visual feedback.

Q6P7CXXY02E FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the Q6P7CXXY02E?

The operating voltage range is 1.8 to 3.3 VDC.

What is the viewing angle of this LED indicator?

The viewing angle is 100 degrees.

What is the maximum panel thickness supported?

The maximum panel thickness is 7 mm.

What is the life expectancy of the indicator?

The life expectancy is 100,000 hours.

Is the indicator RoHS compliant?

RoHS compliance status is marked as compliant.
