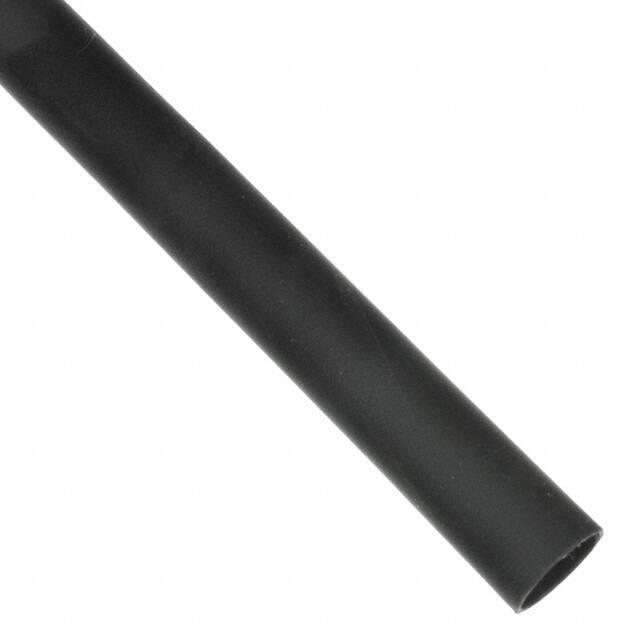

Q5-2X-1/4-01-QB48IN-25 Qualtek Q5-2X-1/4-01-QB48IN-25 is a 1/4" black polyolefin heat shrink tubing with dual wall adhesive lining. It features a 2:1 shrink ratio, 600V rating, and operates from -45°C to 125°C.
Mfr Part #:

Q5-2X-1/4-01-QB48IN-25

Available from 1 distributors
Mfr Name: Qualtek
Qualtek
Qualtek Q5-2X-1/4-01-QB48IN-25 is a 1/4" black polyolefin heat shrink tubing with dual wall adhesive lining. It features a 2:1 shrink ratio, 600V rating, and operates from -45°C to 125°C.
✓ Total Stock: 288 pcs
$ Price Range: $26.80 - $49.61

Q5-2X-1/4-01-QB48IN-25 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
288 pcs
On Request
288 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

Q5-2X-1/4-01-QB48IN-25 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Features
Inner Diameter
Length
Material
Operating Temperature
Rated Voltage
Recovered Wall Thickness
Shelf Life
Shrink Temperature
Shrinkage Ratio
Storage
Storage Temperature
Tape & Reel
Type
View Similar Products (0)

Q5-2X-1/4-01-QB48IN-25 Description

Short technical summary and product information.

The Qualtek Q5-2X-1/4-01-QB48IN-25 is a dual wall, adhesive lined, flexible polyolefin heat shrink tubing. It has a 2:1 shrink ratio with a supplied inner diameter of 0.125" (3.18mm) that recovers to a maximum of 1.6mm. The recovered wall thickness is 0.030" (0.76mm) with a nominal adhesive layer of 0.20mm. Shrinkage begins at 100°C with full recovery at 125°C.



The tubing is rated for 600V and withstands AC 2500V dielectric testing. It offers a tensile strength of at least 10.4 MPa and elongation of 200% minimum. Flame rating is VW-1, and it is RoHS3 compliant. Approvals include File No. E236137 and File No. 242540. Water absorption is less than 0.5%.



This tubing is designed for protection against water and moisture in automotive wires, shipping cables, metal tubes, and bundled wire applications. It is supplied cut to 4.00' (1.22m) lengths in bags of 25 pieces. Operating temperature range is -45°C to 125°C, with a storage temperature range of -10°C to 40°C and a shelf life of 60 months.

Q5-2X-1/4-01-QB48IN-25 Quick Information

Product Type: Heat Shrink Tubing
Series: Q5-2X
Canonical Name: Qualtek Q5-2X 1/4" Dual Wall Adhesive Lined Heat Shrink Tubing, 4ft Length, Black
Subcategory: Dual Wall Adhesive Lined Heat Shrink Tubing

Q5-2X-1/4-01-QB48IN-25 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

Q5-2X-1/4-01-QB48IN-25 Estimated Pricing

Qty Low High
1+ $49.61 $49.61
5+ $37.54 $37.54
10+ $34.33 $34.33
20+ $30.60 $30.60
50+ $28.12 $28.12
100+ $27.47 $27.47
200+ $26.80 $26.80

Estimated market price range - modelled values for guidance only, not live distributor offers.

Q5-2X-1/4-01-QB48IN-25 Features

  • Dual wall adhesive lined for moisture sealing.
  • 2:1 shrink ratio with 3.18mm supplied inner diameter.
  • Rated for 600V and AC 2500V dielectric withstand.
  • Flame rating VW-1 and RoHS3 compliant.
  • Operating temperature range -45°C to 125°C.

Q5-2X-1/4-01-QB48IN-25 Applications

  • Used for automotive wire harness sealing.
  • Ideal for protecting marine cable splices.
  • Suitable for sealing metal tube joints.
  • Protects bundled wires in industrial equipment.
  • Provides moisture barrier in outdoor junction boxes.

Q5-2X-1/4-01-QB48IN-25 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of this heat shrink tubing?

-45°C to 125°C.

Is this tubing RoHS compliant?

Yes, RoHS3 compliant as verified by the datasheet.

What is the shrink ratio and recovered inner diameter?

The shrink ratio is 2:1. Supplied inner diameter is 3.18mm, recovered maximum inner diameter is 1.6mm.

What material and color is this tubing?

It is made of black polyolefin (PO).

What is the voltage rating and flame rating?

Rated voltage is 600V with AC 2500V withstand. Flame rating is VW-1.

How is this heat shrink tubing packaged?

Packaged as cut to length (bag), 4.00' (1.22m) pieces, 25 pieces per bag.

What is the shelf life and storage temperature?

Shelf life is 60 months. Storage temperature range is -10°C to 40°C.
