| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
77 pcs
|
77 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Range | |
| Isolation Voltage | |
| Length | |
| MTBF | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current (Maximum) | |
| Output Voltage | |
| Output Voltage Trim Range | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Switching Frequency | |
| Type | |
| Voltage | |
| Weight | |
| Width |

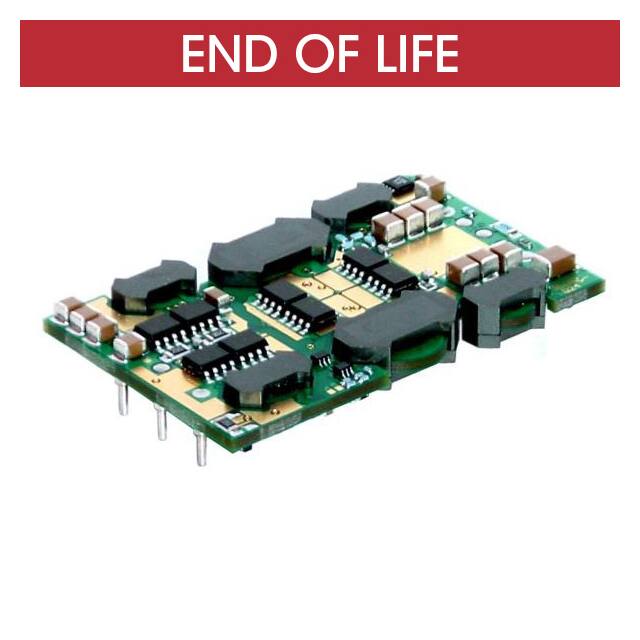

The Bel Power Solutions Q24T15050-NBC0G is a high-efficiency isolated DC-DC converter in the industry-standard quarter-brick form factor. It delivers a regulated 5V output at up to 15A (75W) from a nominal 24V input (18-36V range). Typical full-load efficiency is 88.5%, maintained at half load as well.
This converter features fixed-frequency operation at 435kHz, 2000VDC input-to-output isolation, and includes protection features such as overcurrent (OCP), overvoltage (OVP), overtemperature (OTP), and under-voltage lockout (UVLO). It supports remote on/off (negative logic), remote output sense, and start-up into a pre-biased output with no minimum load required.
Packaged in an 8-DIP through-hole quarter-brick module measuring 58.4mm x 36.8mm (2.30" x 1.45") with a low profile of 8.6mm (0.34") and typical weight of 28g. The operating temperature range is -40°C to +85°C.
The output voltage is 5V nominal.
The input voltage range is 18V to 36V, with a typical value of 24V.
The maximum output current is 15A.
The operating temperature range is -40°C to +85°C.
The datasheet indicates RoHS lead-free solder and lead-solder-exempted options are available. The recorded compliance is RoHS3, but this status is unverified.
The package is an 8-DIP Module in the quarter-brick form factor, through-hole mounting.
The typical efficiency is 88.5% at 15A output.
