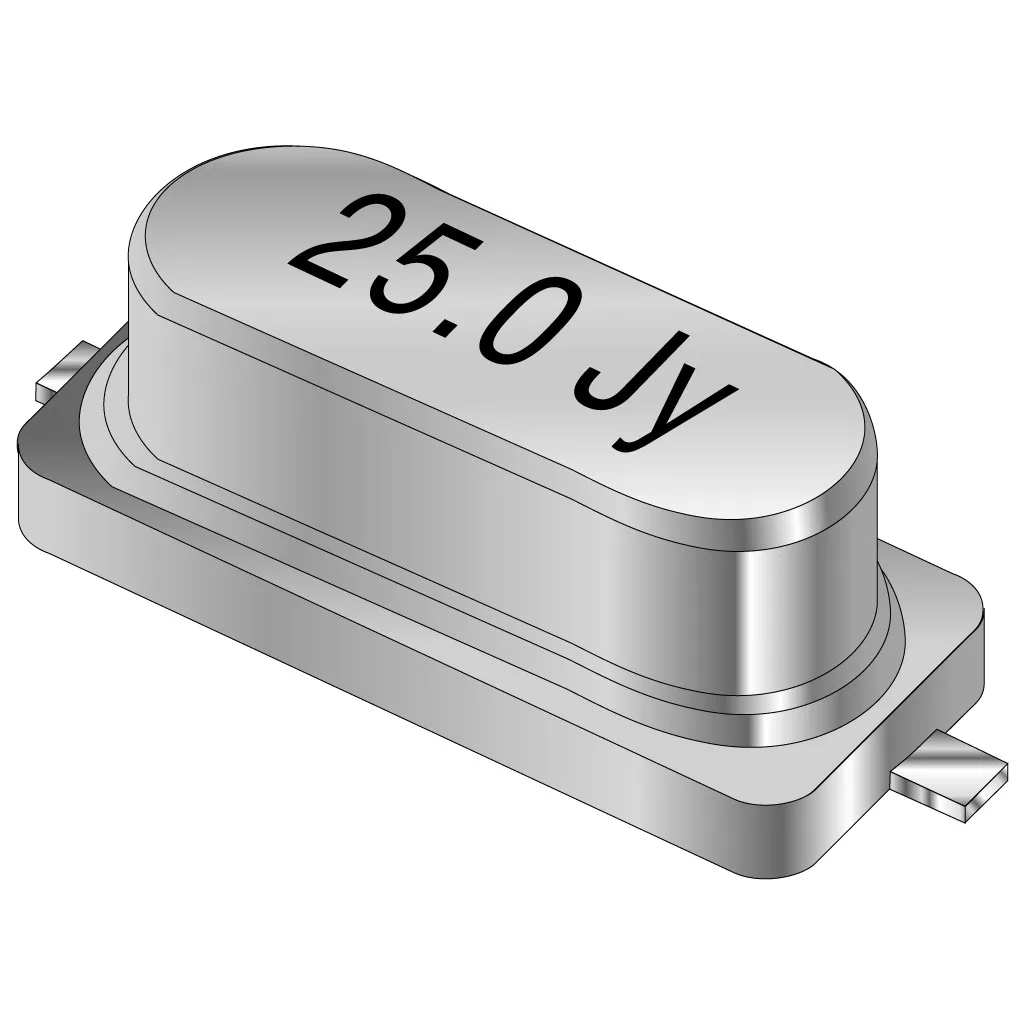

Q14,74560-SMU4-30-30/30-LF The JAUC Q14,74560-SMU4-30-30/30-LF is a quartz crystal operating at 14.7456MHz with a frequency tolerance of ±30ppm. It is housed in an HC49/U4H SMD package.
Mfr Part #:

Q14,74560-SMU4-30-30/30-LF

Available from 1 distributors
Mfr Name: JAUC
JAUC
The JAUC Q14,74560-SMU4-30-30/30-LF is a quartz crystal operating at 14.7456MHz with a frequency tolerance of ±30ppm. It is housed in an HC49/U4H SMD package.
✓ Total Stock: 2,539 pcs

Q14,74560-SMU4-30-30/30-LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
2,539 pcs
On Request
2539 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

Q14,74560-SMU4-30-30/30-LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Frequency Tolerance
Height
Lead Spacing
Length
Load Capacitance
Mounting Type
Package / Case
Width
View Similar Products (0)

Q14,74560-SMU4-30-30/30-LF Description

Short technical summary and product information.

This JAUC crystal, part number Q14,74560-SMU4-30-30/30-LF, operates at a nominal frequency of 14.7456 MHz. It offers a frequency tolerance of ±30 ppm at 25 °C and a load capacitance of 30 pF. The crystal is designed for surface mounting and comes in an HC49/U4H SMD package.



With a compact size measuring 11.7 mm in length, 4.8 mm in width, and 4 mm in height, this component is suitable for applications where space is a consideration. It operates within a temperature range of -20 °C to +70 °C. The component has 2 terminals and a lead spacing of 4.4 mm.



This crystal is suitable for various electronic circuits requiring stable frequency generation. Its surface-mount design facilitates automated assembly processes, making it a practical choice for mass production. The RoHS 3 compliance indicates adherence to environmental regulations regarding hazardous substances.

Q14,74560-SMU4-30-30/30-LF Quick Information

Product Type: Crystal
Series: SMU4
Canonical Name: JAUC Q14,74560-SMU4-30-30/30-LF Crystal
Subcategory: SMD Crystal

Q14,74560-SMU4-30-30/30-LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

Q14,74560-SMU4-30-30/30-LF Features

  • 14.7456 MHz nominal frequency.
  • ±30 ppm frequency tolerance at 25 °C.
  • 30 pF load capacitance.
  • HC49/U4H SMD surface mount package.
  • Operates from -20 °C to +70 °C.

Q14,74560-SMU4-30-30/30-LF Applications

  • Used in microprocessor clock circuits.
  • Suitable for communication timing reference.
  • Ideal for embedded system oscillators.
  • Employed in precision timing modules.

Q14,74560-SMU4-30-30/30-LF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating frequency of the Q14,74560-SMU4-30-30/30-LF crystal?

The operating frequency is 14.7456 MHz.

What is the frequency tolerance of this crystal?

The frequency tolerance is ±30 ppm at 25 °C.

What is the load capacitance for this crystal?

The load capacitance is 30 pF.

What is the operating temperature range for this component?

The operating temperature range is -20 °C to +70 °C.

What type of package is the Q14,74560-SMU4-30-30/30-LF crystal in?

It is in an HC49/U4H SMD package.

How is this crystal mounted?

This crystal is designed for surface mounting.
