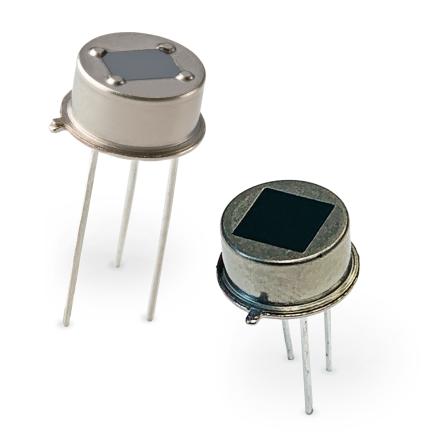

PYQ1348 The Excelitas PYQ1348 is a single-output quad pyrodetector featuring four sensing elements in a TO-5 metal housing for EMI shielding. It offers high responsivity and various field-of-view options.
Mfr Part #:

PYQ1348

Available from 1 distributors
Mfr Name: Excelitas Technologies
Excelitas Technologies
The Excelitas PYQ1348 is a single-output quad pyrodetector featuring four sensing elements in a TO-5 metal housing for EMI shielding. It offers high responsivity and various field-of-view options.
✓ Total Stock: 1,657 pcs

PYQ1348 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,657 pcs
On Request
1657 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PYQ1348 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Package / Case
SVHC Present
View Similar Products (0)

PYQ1348 Description

Short technical summary and product information.

Excelitas Technologies' PYQ1348 is a single-output quad pyrodetector designed for various sensing applications. It houses four sensing elements, electrically connected in series to provide a single analog output signal. The detector is housed in a TO-5 metal package, offering robust EMI shielding.



The PYQ1348 features high-responsivity ceramic pyroelectric elements and is available with different element sizes and spacings, including smaller elements for compact lenses and short detection distances. It offers a typical field-of-view of 124° (or 140°), with a specific version offering 103°.



This pyrodetector series is suitable for applications such as mid-distance motion detection when used with appropriate optics, energy-saving devices, and intrusion alarms. Its design is also well-suited for ceiling-mounted applications.

PYQ1348 Quick Information

Product Type: Pyroelectric IR Detector
Series: PYQ 1348
Canonical Name: PYQ1348 Single-Output Quad Pyrodetector
Subcategory: Quad Pyrodetector

PYQ1348 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PYQ1348 Features

  • Four sensing elements in a square placement.
  • Single analog output signal.
  • TO-5 metal housing for EMI shielding.
  • High-responsivity ceramic pyroelectric elements.
  • Multiple field-of-view options available.

PYQ1348 Applications

  • Mid-distance motion detection.
  • Energy saving applications.
  • Intrusion alarms.
  • Ceiling mounted devices.

PYQ1348 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the responsivity of the PYQ1348 pyrodetector?

The PYQ1348 pyrodetector has a typical responsivity of 6.5 kV/W.

What is the field-of-view for the PYQ1348?

The PYQ1348 has a typical field-of-view of 124° (or 140°).

What package type does the PYQ1348 use?

The PYQ1348 is housed in a TO-5 metal package.

What are the applications for the PYQ1348?

Applications include mid-distance motion detection, energy saving, intrusion alarms, and ceiling-mounted devices.
