| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

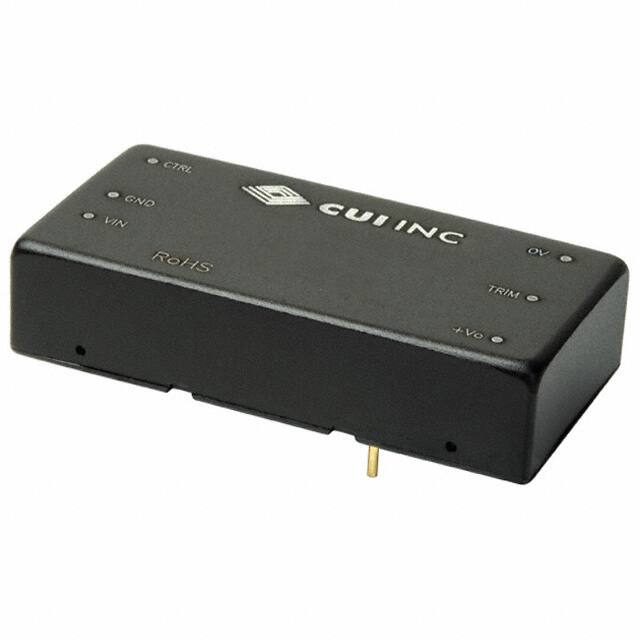

The PYB15-Q24-S15 is an isolated DC DC converter from CUI Inc. in the PYB15 series. It delivers a regulated 15V output at up to 1000 mA (15W maximum) from a 9 to 36 Vdc input range.
This converter provides 1500 Vdc input-to-output isolation and includes protection features such as overcurrent (OCP), overvoltage (OVP), short circuit (SCP), and undervoltage lockout (UVLO). It is designed for commercial ITE (Information Technology Equipment) applications and offers a typical efficiency of 89% at nominal input and full load.
The PYB15-Q24-S15 is housed in a 6-DIP through-hole module measuring 50.8 mm x 25.4 mm x 11.8 mm. The operating temperature range is -40°C to 85°C. Ripple and noise are specified at 100 mVp-p maximum. Control is via an enable input (active high).
The nominal output voltage is 15 Vdc.
The operating input voltage range is 9 to 36 Vdc (nominal 24 Vdc).
The operating temperature range is -40°C to 85°C.
It uses a through-hole 6-DIP module package.
Yes, it provides 1500 Vdc input-to-output isolation.
It includes overcurrent protection (OCP), overvoltage protection (OVP), short circuit protection (SCP), and undervoltage lockout (UVLO).
