| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

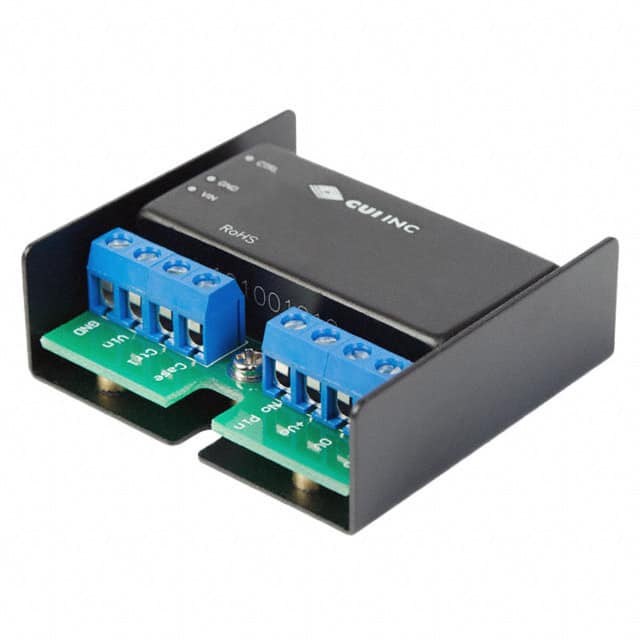

The CUI Inc. PYB10-Q24-S5-U is an enclosed DC-DC converter designed for reliable power conversion. It features a 10W maximum output power and a regulated 5V output voltage, capable of delivering up to 2A.
The converter accepts a wide input voltage range of 9-36 Vdc, providing flexibility in various power systems. Key electrical specifications include 1500 Vdc isolation, typical efficiency up to 82%, and a switching frequency of 350 KHz. It also offers line regulation of ±0.5% and load regulation of ±1%.
Designed for demanding environments, the PYB10-Q24-S5-U operates across a broad temperature range from -40°C to 85°C. Its dimensions are 54.9mm x 52.3mm x 19.1mm, suitable for chassis mounting.
This series is EN/BS EN 62368-1 certified, ensuring compliance with safety standards. Note that U-frame versions are discontinued, and this specific model is not CE certified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9-36 Vdc.
The output voltage is 5 Vdc and the maximum output current is 2A.
The maximum output power is 10W.
The operating temperature range is -40°C to 85°C.
The isolation voltage is 1500 Vdc.
The dimensions are 54.9mm x 52.3mm x 19.1mm.
The RoHS status is RoHS3 Compliant.
