| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43 pcs
|
43 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Cable Diameter Range | |
| Connector Type | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Overall Diameter | |
| Overall Length | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Tape & Reel | |
| Termination Style | |
| Type |

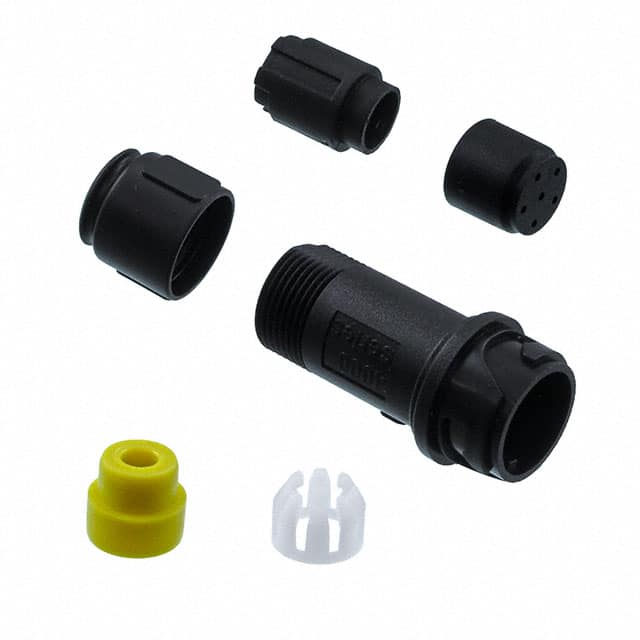

The PXP4011/06P/5055 is a 6 position circular connector receptacle housing from Bulgin Components, part of the 4000 Series Buccaneer family. Designed for male pins, this housing supports crimp and solder cup contacts. It features free hanging (inline) mounting with a bayonet lock for secure mating.
Housing material is a halogen-free polycarbonate/polybutylene terephthalate (PBT) blend, rated UL94 V-0 for flammability, and colored black. The connector provides IP66/IP68/IP69K ingress protection, making it dust tight, water resistant, and waterproof. It includes a backshell and is UV resistant.
Mechanical dimensions include an overall length of 46.3 mm, an overall diameter of 19.6 mm, and a cable diameter range of 3 to 7 mm. The connector is unshielded. Typical applications include harsh environment power connections, industrial automation, and outdoor or marine systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.83 | $16.83 |
| 10+ | $14.30 | $14.30 |
| 25+ | $13.41 | $13.41 |
| 50+ | $12.76 | $12.76 |
| 100+ | $12.15 | $12.15 |
| 250+ | $11.39 | $11.39 |
| 500+ | $10.85 | $10.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions (power).
Free hanging (in-line).
IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof.
Bayonet lock.
Halogen-free polycarbonate/polybutylene terephthalate (PBT) blend.
UL94 V-0.
Crimp and solder cup.
