| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Cable Diameter Range | |
| Connector Type | |
| Contact Type | |
| Coupling Ring Diameter | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Material | |
| Shielding | |
| Tape & Reel | |
| Type | |
| Vibration Standard | |
| Voltage Rating |

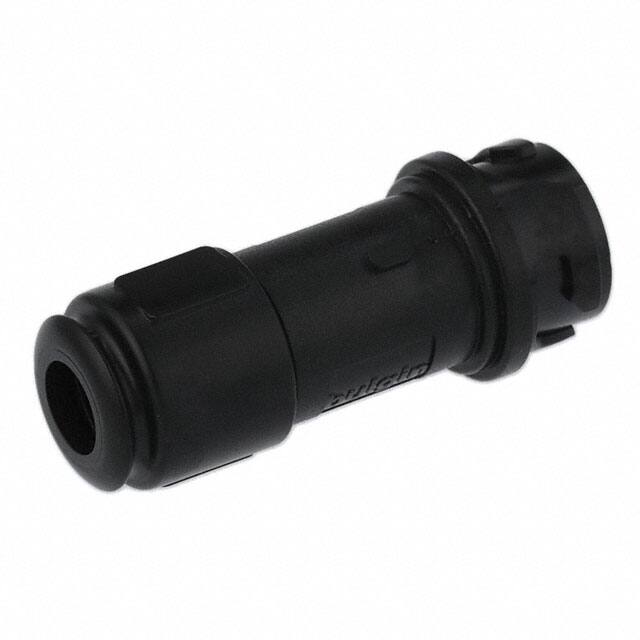

The Bulgin PXP4011/06P/3035 is a free-hanging (inline) receptacle housing designed for the 4000 Series Buccaneer power connectors. It features a 6-position male configuration with crimp and solder cup contact types, and a keyed orientation with bayonet lock fastening for secure mating.
The housing is constructed from a halogen-free polycarbonate/polybutylene terephthalate (PBT) blend with a black finish, rated UL94 V-0 for flammability. It provides environmental protection rated IP66, IP68, and IP69K, making it suitable for dust-tight and waterproof applications. The housing includes a backshell and is UV resistant.
With a cable diameter acceptance range of 3 to 7 mm and a coupling ring diameter of 19.8 mm, it accommodates various cable sizes. The series is rated for up to 13 A and 600 V (contact-dependent). Approvals include cULus and VDE, and it meets EN60068-2-64 vibration resistance standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.16 | $16.16 |
| 10+ | $14.59 | $14.59 |
| 25+ | $13.52 | $13.52 |
| 50+ | $12.76 | $12.76 |
| 100+ | $12.62 | $12.62 |
| 250+ | $12.10 | $12.10 |
| 500+ | $11.67 | $11.67 |
| 1,000+ | $11.23 | $11.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions (power).
The series is rated up to 13 A, but the actual rating depends on the contacts used.
The series is rated up to 600 V, but the actual rating depends on the contacts used.
Free Hanging (In-Line).
IP66, IP68, and IP69K – dust tight, water resistant, waterproof.
Cable diameter range of 3 to 7 mm.
Polycarbonate/Polybutylene Terephthalate (PBT), halogen free, with UL94 V-0 flammability rating.
