| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| AC Breakdown Voltage | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Diameter Over Coupling Ring | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Insulation Resistance | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

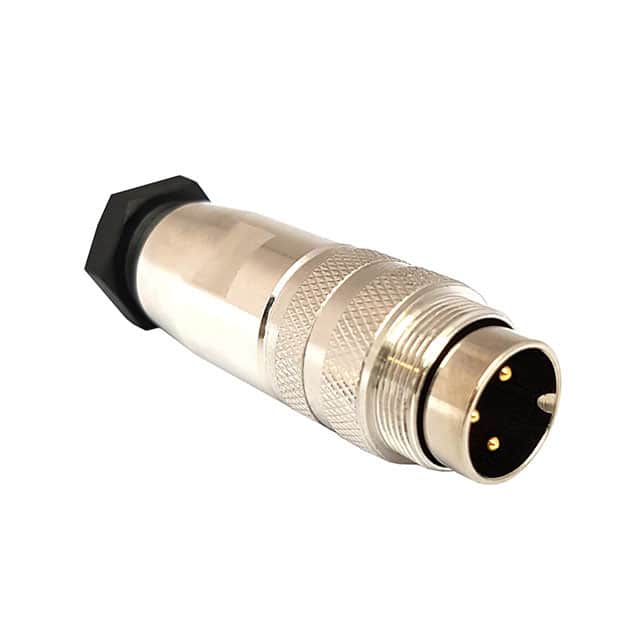

The Bulgin PXMBNI16FIM03ASCPG9 is a rugged circular connector from the Buccaneer M16 series, designed for reliable power and signal connections in harsh environments. This male inline connector features 3 male pins with gold-plated contacts for low contact resistance and reliable conductivity.
Key electrical specifications include a 7A current rating and 250V voltage rating, with a maximum contact resistance of 5mΩ and minimum insulation resistance of 1000MΩ. The connector is shielded for EMI protection and has an IP67 rating when mated, ensuring dust-tight and waterproof operation.
The connector uses a threaded fastening type with A-coding orientation and is terminated via solder cups. It has a brass shell with nickel finish and includes a backshell. The cable opening accommodates cables from 5.00mm to 7.50mm in diameter. It is rated for a minimum of 500 mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $45.21 | $45.21 |
| 10+ | $39.63 | $39.63 |
| 20+ | $38.50 | $38.50 |
| 100+ | $38.48 | $38.48 |
| 200+ | $33.42 | $33.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 3 positions.
The current rating is 7A.
The voltage rating is 250V.
The mounting type is Free Hanging (In-Line).
The ingress protection rating is IP67, meaning it is dust tight and waterproof.
The operating temperature range is -25°C to 80°C.
The shell is made of brass with a nickel finish.
