| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Current Rating (Maximum @ 12 Contact) | |
| Current Rating (Maximum @ 2-3 Contact) | |
| Current Rating (Maximum @ 25 Contact) | |
| Current Rating (Maximum @ 4 Contact) | |
| Current Rating (Maximum @ 6-7 Contact) | |
| Current Rating (Maximum @ 9 Contact) | |
| Fastening Type | |
| Housing Color | |
| IP Rating | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shielding | |
| Type | |
| Voltage Rating (Maximum @ 12-25 Contact) | |
| Voltage Rating (Maximum @ 2-7 Contact) | |
| Voltage Rating (Maximum @ 9 Contact) |

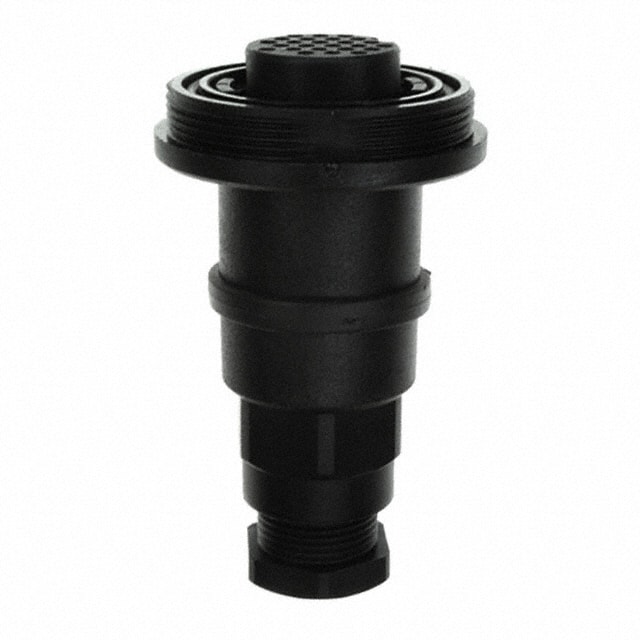

The Bulgin PX0821/S is a 25-position circular connector housing from the Standard Buccaneer series. It is a receptacle housing designed for female sockets, offering a free hanging (in-line) mounting style with threaded coupling for secure mating. The housing is made from glass-filled polyamide (nylon) in black, with a keyed orientation to prevent misconnection.
Electrical ratings for this 25-contact variant are 1A maximum current and 50V AC/DC maximum voltage. The housing provides IP68 protection against dust and prolonged immersion, and IP69K for high-pressure washdown environments. It is unshielded and rated UL94 HB for flammability. Contact termination is via crimp or solder cup, requiring separate contacts ordered as needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.74 | $19.74 |
| 10+ | $16.78 | $16.78 |
| 25+ | $15.73 | $15.73 |
| 50+ | $14.97 | $14.97 |
| 100+ | $14.25 | $14.25 |
| 250+ | $13.36 | $13.36 |
| 500+ | $12.73 | $12.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PX0821/S is a 25-position receptacle housing.
The maximum current rating is 1A per contact.
The maximum voltage rating is 50V AC/DC.
It is designed for free hanging (in-line) mounting.
It is rated IP68 (dust tight, waterproof to 100m depth) and IP69K.
It accepts crimp and solder cup contacts.
It uses threaded fastening for secure coupling.
