| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter Range (Minimum/Maximum) | |
| Connector Type | |
| Contact Type | |
| Current Rating (Nominal @ 12 Contact) | |
| Current Rating (Nominal @ 2-3 Contact) | |
| Current Rating (Nominal @ 25 Contact) | |
| Current Rating (Nominal @ 4 Contact) | |
| Current Rating (Nominal @ 6-7 Contact) | |
| Current Rating (Nominal @ 9 Contact) | |
| Diameter Over Coupling Ring | |
| Fastening Type | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| SVHC Present | |
| Shell Material | |
| Shielding | |
| Type | |
| Voltage Rating (Nominal @ 12 Contact) | |
| Voltage Rating (Nominal @ 2-3 Contact) | |
| Voltage Rating (Nominal @ 25 Contact) | |
| Voltage Rating (Nominal @ 4 Contact) | |
| Voltage Rating (Nominal @ 6-7 Contact) | |
| Voltage Rating (Nominal @ 9 Contact) |

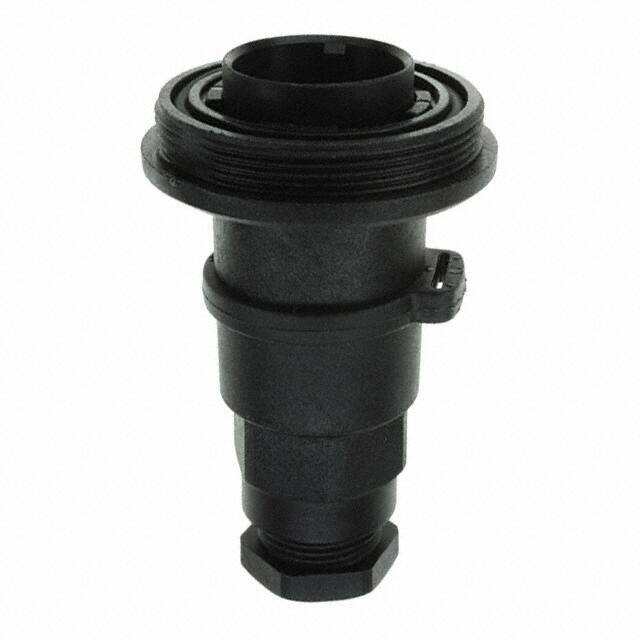

The Bulgin PX0821/P is a 25 position circular connector housing from the Standard Buccaneer series. It is designed as a receptacle housing that accepts male pins with crimp or solder cup contacts. The housing features a threaded coupling mechanism for secure mating and is keyed to prevent misalignment.
This housing is rated IP68 dust tight and waterproof, tested at 1.054 kg/sq cm (10m depth) for 2 weeks and 9.84 kg/sq cm (100m depth) for 12 hours, with IP69K compliance per DIN 40050. The glass filled nylon shell offers a UL94 HB flammability rating. The free hanging inline mounting style accommodates cables from 3.5mm to 9mm diameter.
Electrical ratings vary by contact count: for the 25 contact version, each contact is rated 1A at 50V AC/DC. The housing is unshielded and has a diameter over coupling ring of 38mm. It mates with inline or panel mounting versions of the same series.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.63 | $18.63 |
| 10+ | $16.45 | $16.45 |
| 25+ | $15.41 | $15.41 |
| 100+ | $14.62 | $14.62 |
| 250+ | $14.09 | $14.09 |
| 500+ | $13.79 | $13.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This housing has 25 positions for power contacts.
The 25 contact version is rated at 1A per contact.
The voltage rating for the 25 contact version is 50V AC/DC.
This housing supports free hanging (in-line) mounting.
The housing is rated IP68 dust tight and waterproof.
The shell is made of glass filled polyamide (nylon).
The fastening type is threaded.
