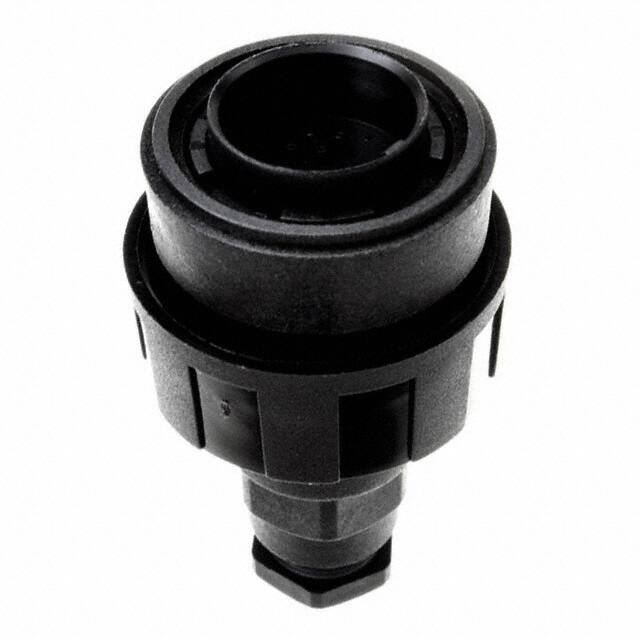

PX0820/P Bulgin PX0820/P is a Standard Buccaneer circular connector plug housing for 25 male pins. It features a threaded coupling, IP68 ingress protection, and a free hanging inline mount.
Mfr Part #:

PX0820/P

Available from 1 distributors
Mfr Name: Bulgin LTD.
Bulgin LTD.
Bulgin PX0820/P is a Standard Buccaneer circular connector plug housing for 25 male pins. It features a threaded coupling, IP68 ingress protection, and a free hanging inline mount.
✓ Total Stock: 150 pcs
$ Price Range: $12.16 - $18.86

PX0820/P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PX0820/P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Fastening Type
Features
Housing Color
Ingress Protection
Material Flammability Rating
Mounting Type
Number of Positions
Orientation
Shell Material
Shielding
Type
View Similar Products (0)

PX0820/P Description

Short technical summary and product information.

The Bulgin PX0820/P is a plug housing from the Standard Buccaneer series of circular power connectors. It is designed for use with 25 male pin contacts and accepts crimp and solder cup terminations. The housing is constructed from a black glass-filled polyamide (nylon) shell, providing a durable and lightweight enclosure.



This connector housing features a threaded fastening mechanism for secure mating and a keyed orientation to prevent misconnection. It includes a backshell and coupling nut. The housing is rated IP68 for dust tight and waterproof protection when mated, and has a UL94 HB flammability rating.



The PX0820/P is designed for free hanging (in-line) mounting and accepts cables with a diameter range of 3.5 mm to 9 mm. The diameter over the coupling ring is 38 mm. This housing is unshielded.

PX0820/P Quick Information

Product Type: Circular Connector Housing
Series: Standard Buccaneer
Canonical Name: Bulgin Standard Buccaneer Circular Connector Plug Housing, 25 Position, for Male Pins
Subcategory: Circular Connector Housings

PX0820/P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PX0820/P Estimated Pricing

Qty Low High
1+ $18.86 $18.86
10+ $17.42 $17.42
25+ $15.03 $15.03
50+ $14.30 $14.30
100+ $13.62 $13.62
250+ $12.77 $12.77
500+ $12.16 $12.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

PX0820/P Features

  • 25-position plug housing for male pins.
  • IP68 rated for dust and waterproof protection.
  • Threaded coupling with keyed orientation.
  • Accepts crimp and solder cup contacts.
  • Glass-filled nylon shell with UL94 HB rating.

PX0820/P Applications

  • Suitable for industrial power and signal connections.
  • Used in environments requiring IP68 sealing.
  • Ideal for inline cable-to-cable connections.
  • Applicable in marine and outdoor equipment.

PX0820/P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type for the PX0820/P?

Free Hanging (In-Line).

What is the current rating for this connector housing?

1 A maximum per contact.

What is the voltage rating for the PX0820/P?

50 V AC/DC maximum.

What is the ingress protection rating of the PX0820/P?

IP68 - Dust Tight, Waterproof.

What type of contacts does this housing accept?

Crimp and Solder Cup contacts for male pins.

What is the shell material of the PX0820/P?

Polyamide (PA), Nylon, Glass Filled.

What is the cable diameter range for this connector?

3.5 mm to 9 mm.
