| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Acceptable Insert Gender | |
| Cable Diameter Range | |
| Connector Type | |
| Contact Type | |
| Coupling Ring Diameter | |
| Failure Rate | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mating Connector Type | |
| Mounting Type | |
| Positive Locating Keyways | |
| Primary Material | |
| SVHC Present | |
| Salt Mist Test Standard | |
| Screw Locking Ring | |
| Shell Material | |
| Shielding | |
| UL Approval |

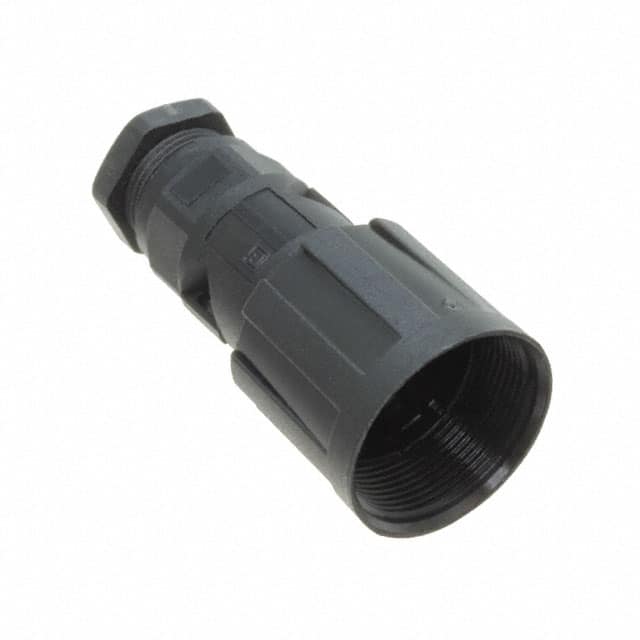

The Bulgin PX0800 is a Mini Buccaneer series circular connector insert shell designed for free hanging (inline) cable applications. It accepts cable diameters from 3.5mm to 9mm and features a threaded fastening type with a screw locking ring and positive locating keyways to prevent mismating.
This housing is made from polyamide (nylon) with a UL94 V-0 flammability rating and is unshielded. It provides IP68 dust-tight and waterproof protection when mated, tested at 1.054 kg/sq cm (15 lb/sq in) and 10m depth for 2 weeks. The coupling ring diameter is 26mm.
The PX0800 mates with inline or panel mounting versions and accepts plug or socket inserts (screw terminal, solder, or crimp contact types, sold separately). It includes a backshell and coupling nut. The part is UL approved and meets EN60068-2-52 salt mist test standard for marine severity level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.75 | $12.75 |
| 10+ | $10.91 | $10.91 |
| 20+ | $10.23 | $10.23 |
| 50+ | $9.74 | $9.74 |
| 100+ | $9.12 | $9.12 |
| 200+ | $8.47 | $8.47 |
| 500+ | $7.98 | $7.98 |
| 1,000+ | $7.87 | $7.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PX0800 is rated IP68 - dust tight and waterproof when mated, tested at 1.054 kg/sq cm (15 lb/sq in) and 10m depth for 2 weeks.
The PX0800 accepts cable diameters from 3.5mm to 9mm.
The shell is made of polyamide (PA), nylon with a UL94 V-0 flammability rating.
The PX0800 is designed for free hanging (inline) mounting.
No, contact inserts are supplied separately. The housing accepts plug or socket inserts with screw terminal, solder, or crimp contact types.
