| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Housing Color | |
| IP69K Rating | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shielding | |
| Type | |
| Voltage Rating |

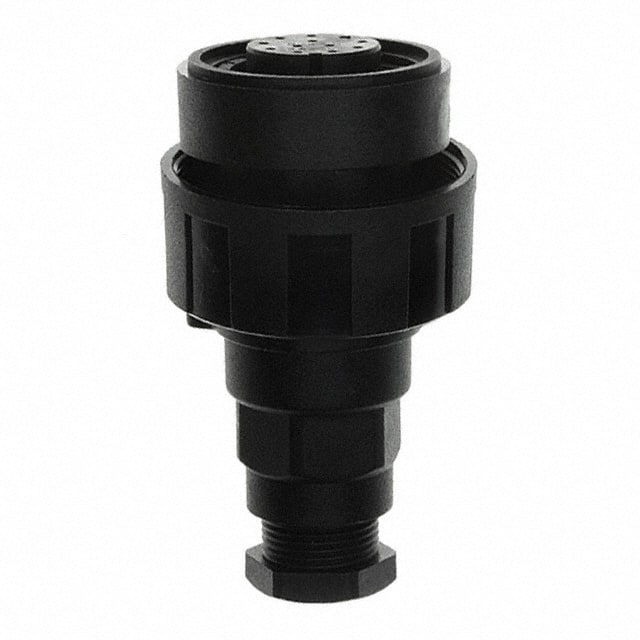

The Bulgin Components PX0794/S is a 12 position circular connector plug housing from the Standard Buccaneer series. It is designed for use with female sockets and accepts crimp and solder cup contacts. The housing is made of glass-filled polyamide (nylon) with a black finish, providing durability and resistance to harsh environments.
The connector features a threaded coupling mechanism for secure mating and a keyed orientation to prevent misconnection. It is rated for IP68 dust tight and waterproof protection, tested at 10 meters depth for 2 weeks, and also meets IP69K standards for high-pressure washdown applications. The housing is unshielded and has a UL94 HB flammability rating.
With a current rating of 5A and voltage rating of 50V AC/DC, this connector is suitable for power and signal applications in demanding conditions. The free hanging (in-line) mounting style allows flexible cable routing, and the backshell and coupling nut features facilitate easy assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $28.00 | $28.00 |
| 10+ | $24.76 | $24.76 |
| 50+ | $22.30 | $22.30 |
| 100+ | $20.22 | $20.22 |
| 250+ | $18.96 | $18.96 |
| 500+ | $18.06 | $18.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 12 positions (power).
The current rating is 5 A.
The voltage rating is 50 V AC/DC.
The mounting type is Free Hanging (In-Line).
It is rated IP68 (dust tight, waterproof) and also IP69K.
The shell material is Polyamide (PA), Nylon, Glass Filled.
It uses a threaded fastening type.
