| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shielding | |
| Termination Style | |
| Type | |
| Voltage Rating |

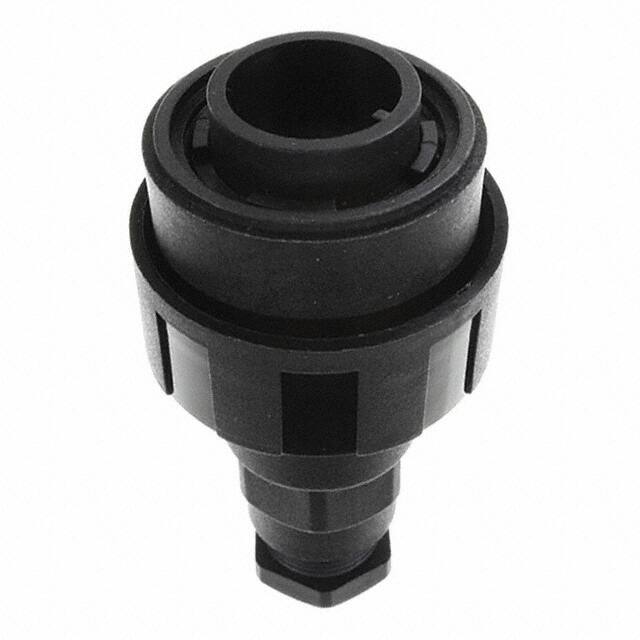

The Bulgin PX0794/P is a 12 position plug housing designed for male pins, part of the Buccaneer series of circular power connectors. It features a free hanging (inline) mounting style with threaded fastening and keyed orientation to prevent mis-mating. The housing is made from polyamide (nylon) glass filled material, providing durability and a black finish. It includes a backshell and coupling nut for secure connections.
This connector housing is rated IP68, ensuring dust tight and waterproof performance suitable for harsh environments. It is unshielded and supports crimp and solder cup contact termination. The material flammability rating is UL94 HB.
Electrically, when used with 12 position crimp contacts, the connector is rated for 5A at 50V AC/DC. It is designed for use in power distribution, industrial equipment, and outdoor applications requiring robust environmental protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.14 | $27.14 |
| 10+ | $23.63 | $23.63 |
| 25+ | $22.15 | $22.15 |
| 50+ | $21.09 | $21.09 |
| 100+ | $20.08 | $20.08 |
| 250+ | $18.82 | $18.82 |
| 500+ | $17.93 | $17.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PX0794/P has 12 positions designed for power contacts.
It is designed for free hanging (in-line) mounting.
It is rated IP68, dust tight and waterproof.
When used with 12 position crimp contacts, the current rating is 5A.
For 12 position crimp contacts, the voltage rating is 50V AC/DC.
It uses threaded fastening with a coupling nut.
The shell material is polyamide (nylon) glass filled, with UL94 HB flammability rating.
