| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Material | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

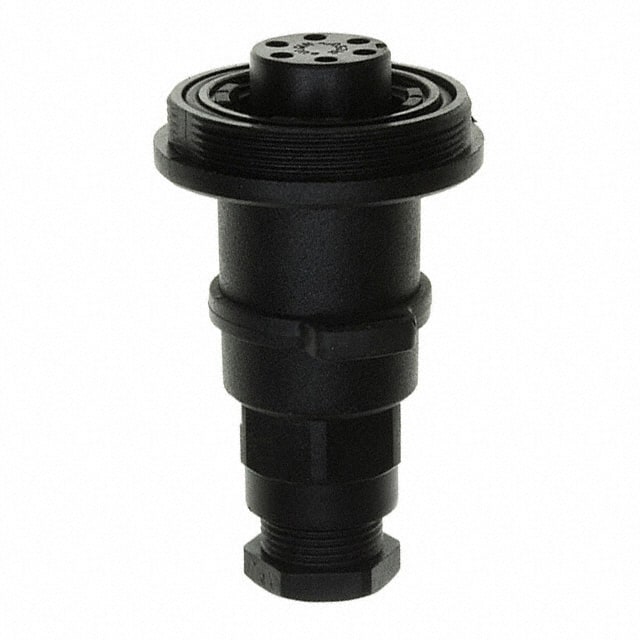

The PX0740/S is a circular connector receptacle from Bulgin Components' Buccaneer series. It is designed for power applications and offers a 6-position configuration with female sockets.
The connector features a free hanging (in-line) mounting style with threaded fastening for secure mating. It has a nickel contact finish and screw termination for reliable connections. The shell is made of polyamide (nylon) with glass filling, providing durability. The connector is unshielded and has a keyed orientation to prevent mis-mating. It includes a backshell for cable strain relief.
The PX0740/S is rated for IP68/IP69K ingress protection, making it dust tight and waterproof. It has a current rating of 3A and a voltage rating of 277VAC/DC. The operating temperature range is -20°C to 70°C. The material flammability rating is UL94 HB.
This connector is suitable for applications requiring a robust, waterproof connection. It is commonly used in industrial, marine, and outdoor environments. The cable opening accommodates cables from 6mm to 8mm diameter.
| Qty | Low | High |
|---|---|---|
| 1+ | $36.57 | $36.57 |
| 10+ | $31.57 | $31.57 |
| 25+ | $29.83 | $29.83 |
| 60+ | $28.23 | $28.23 |
| 120+ | $26.92 | $26.92 |
| 300+ | $25.23 | $25.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions (Power).
3A.
277VAC/DC.
Free Hanging (In-Line).
IP68/IP69K.
Nickel.
Screw.
