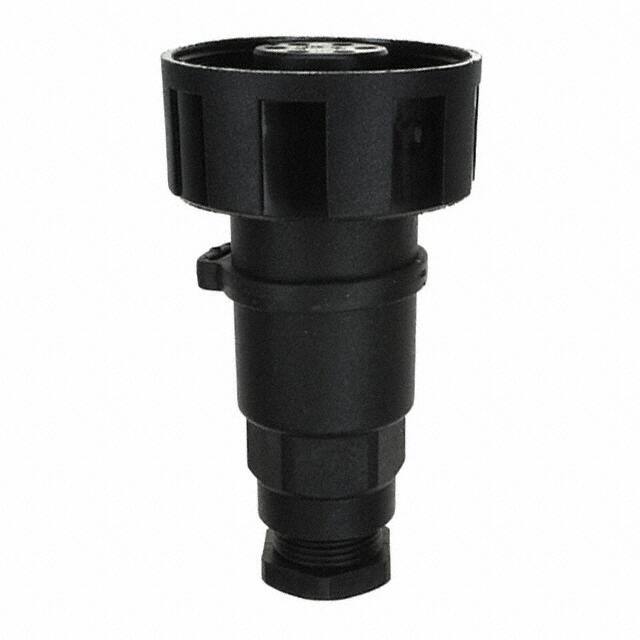

PX0739/S The PX0739/S is a 6-position circular connector plug with female sockets, screw termination, and nickel contact finish. It features IP68/IP69K ingress protection and a threaded coupling mechanism.
Mfr Part #:

PX0739/S

Available from 1 distributors
Mfr Name: Bulgin LTD.
Bulgin LTD.
The PX0739/S is a 6-position circular connector plug with female sockets, screw termination, and nickel contact finish. It features IP68/IP69K ingress protection and a threaded coupling mechanism.
✓ Total Stock: 3 pcs
$ Price Range: $24.44 - $35.26

PX0739/S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PX0739/S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Opening
Color
Connector Type
Contact Finish
Current Rating (Amps)
Fastening Type
Features
Industrial Grade
Ingress Protection
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Orientation
Primary Material
Shell Material
Shielding
Termination
Termination Style
Voltage Rating
View Similar Products (0)

PX0739/S Description

Short technical summary and product information.

The PX0739/S is a circular connector plug from Bulgin Components' Buccaneer series. It features 6 power contacts with female sockets, terminated via screw terminals. The connector is designed for free hanging (in-line) mounting with a threaded fastening system. The shell is made of glass-filled polyamide (nylon) plastic, providing durability and lightweight construction. The contacts are nickel-plated for corrosion resistance. The connector is rated for 3A current and 277V AC/DC, with an operating temperature range of -20°C to 70°C. It offers IP68 and IP69K ingress protection, making it suitable for harsh environments. The connector includes a backshell and coupling nut for secure cable attachment. The cable opening accommodates 6.00mm to 8.00mm diameter cables. The material flammability rating is UL94 HB. This connector is part of the Standard Buccaneer series, designed for power applications requiring reliable sealing and easy assembly.

PX0739/S Quick Information

Product Type: Circular Connector Assembly
Series: Standard Buccaneer
Canonical Name: Circular Connector Plug, Female Sockets, 6 Position, Screw Termination, Nickel Contact Finish
Subcategory: Power Connector

PX0739/S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PX0739/S Estimated Pricing

Qty Low High
1+ $35.26 $35.26
10+ $29.86 $29.86
25+ $27.88 $27.88
50+ $26.55 $26.55
100+ $25.34 $25.34
250+ $24.44 $24.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

PX0739/S Features

  • 6 power contacts with female sockets.
  • Screw termination for easy assembly.
  • IP68/IP69K rated for harsh environments.
  • Threaded coupling for secure connection.
  • Nickel-plated contacts for corrosion resistance.

PX0739/S Applications

  • Ideal for industrial power distribution systems.
  • Suitable for marine and outdoor equipment.
  • Used in automation and control panels.
  • Applicable for LED lighting and signage.

PX0739/S FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the PX0739/S have?

6 positions (power).

What is the current rating of the PX0739/S?

3A per contact.

What is the voltage rating?

277V AC/DC.

What is the mounting type?

Free hanging (in-line).

What is the ingress protection rating?

IP68/IP69K.

What is the operating temperature range?

-20°C to 70°C.

What is the termination style?

Screw.
