| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,425 pcs
|
1425 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

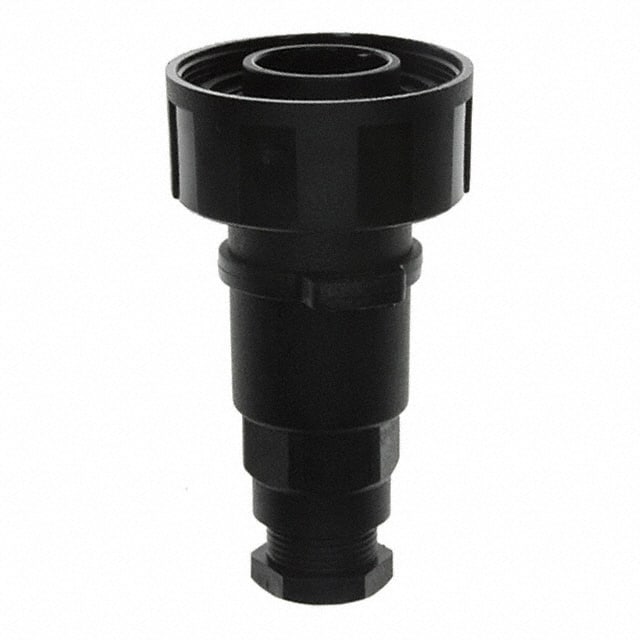

The PX0739/P is a Buccaneer Standard circular plug connector from Bulgin Components. It features 6 power positions with male pin contacts terminated via nickel-plated screw terminals. The connector is designed for free hanging (in-line) mounting with a threaded fastening mechanism and keyed orientation to prevent mis-mating.
Built for demanding industrial and outdoor applications, this plug offers an ingress protection rating of IP68 (dust-tight and waterproof to 10 meters depth for 2 weeks) and IP69K (resistant to high-pressure, high-temperature washdowns). The black polyamide (nylon) shell is glass-filled for strength and rated UL94 HB for flammability. It includes a backshell and coupling nut, and accepts cable diameters from 6.00mm to 8.00mm.
Electrically, the PX0739/P is rated for 3A current and 277V AC/DC operating voltage. Its operating temperature range spans -20°C to 70°C. This connector is part of Bulgin's Buccaneer series, known for reliable sealed power connections in harsh environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $28.45 | $28.45 |
| 10+ | $23.06 | $23.06 |
| 25+ | $21.96 | $21.96 |
| 50+ | $20.90 | $20.90 |
| 100+ | $19.60 | $19.60 |
| 250+ | $18.66 | $18.66 |
| 500+ | $17.77 | $17.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PX0739/P is rated for 3A current per position.
The voltage rating is 277V AC/DC.
It is rated IP68 and IP69K, meaning it is dust tight and waterproof to 10 meters depth for 2 weeks, and resistant to high-pressure washdown.
It uses screw termination for the contacts.
It has 6 power positions.
The operating temperature range is -20°C to 70°C.
