| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

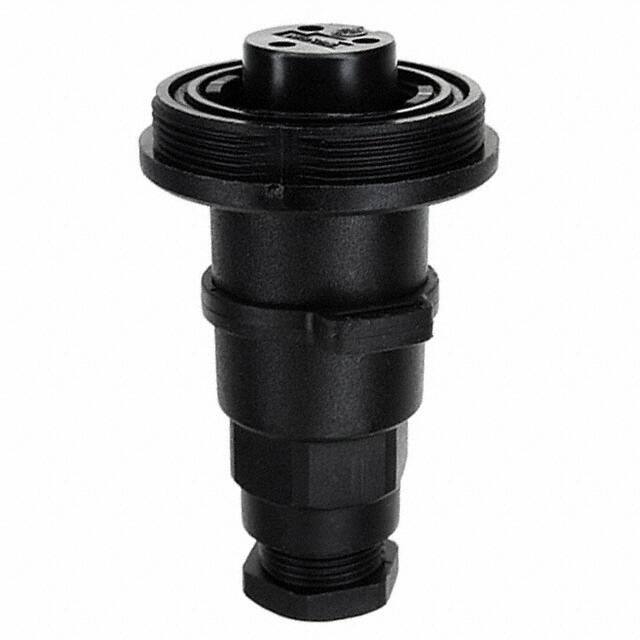

The PX0732/S is a circular connector receptacle from Bulgin Components' Buccaneer series. It is a free hanging (in-line) connector designed for power applications, offering 3 positions (2 power plus protective earth). The connector features a threaded fastening mechanism and a keyed orientation to prevent mis-mating.
Electrically, the connector is rated for 10A continuous current at 277V AC/DC, suitable for moderate power requirements. It achieves IP68 and IP69K ingress protection, making it dust tight and waterproof with resistance to high-pressure water jets. The operating temperature range is -20°C to 70°C.
The shell is constructed from glass-filled polyamide (nylon) plastic, with a black color finish. Contacts are nickel plated for corrosion resistance. Termination is via screw terminals, simplifying field wiring without special tools. The connector includes a backshell feature and accepts cables with diameters from 6.00 to 8.00 mm.
The material flammability rating is UL94 HB. The PX0732/S is part of a family that offers flexible configuration with plug or socket versions in various body styles. It is designed for industrial, marine, and outdoor applications where reliable power connectivity is required under harsh conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $32.08 | $32.08 |
| 10+ | $28.02 | $28.02 |
| 25+ | $25.74 | $25.74 |
| 50+ | $24.43 | $24.43 |
| 100+ | $23.70 | $23.70 |
| 250+ | $22.55 | $22.55 |
| 500+ | $22.54 | $22.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions (2 power + PE).
10A
277VAC/DC
Free Hanging (In-Line)
IP68 and IP69K, dust tight, waterproof, resistant to high-pressure water jets.
-20°C to 70°C
Screw termination.
