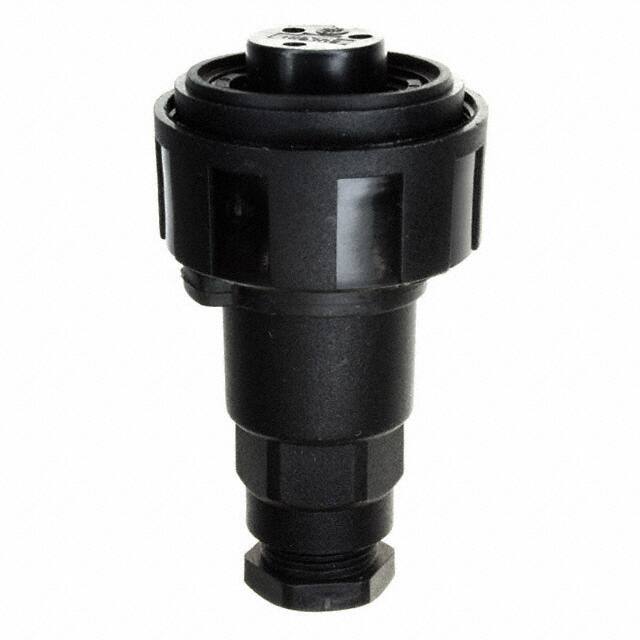

The Bulgin PX0731/S is a 3-position circular power connector from the Buccaneer series, designed for reliable power and signal connections in demanding environments. It features a plug with female sockets, screw termination for easy field wiring, and a threaded coupling nut for secure mating. The connector is rated for 10A at 277V AC/DC and offers IP68/IP69K protection when mated, ensuring dust-tight and waterproof performance even under high-pressure washdown conditions.
The shell is made of polyamide (PA) with glass fill, rated UL94 HB for flammability, and the contacts are nickel-plated for corrosion resistance. The connector accommodates cable diameters from 6mm to 8mm and operates over a temperature range of -20°C to 70°C. It is unshielded and features a keyed orientation to prevent misconnection. The design includes a backshell and coupling nut, and the connector is free-hanging (in-line) mountable.
Typical applications include industrial power distribution, outdoor lighting, marine equipment, and automation systems where robust environmental sealing is required. The Buccaneer series is known for easy assembly without special tools on screw terminal versions, and positive locating keyways ensure correct alignment.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.28 | $29.28 |
| 10+ | $25.29 | $25.29 |
| 25+ | $23.58 | $23.58 |
| 50+ | $22.65 | $22.65 |
| 100+ | $21.90 | $21.90 |
| 250+ | $20.54 | $20.54 |
| 500+ | $19.57 | $19.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions (2 power + PE).
10A.
277V AC/DC.
Free hanging (in-line).
IP68/IP69K - dust tight, water resistant, waterproof.
Screw termination.
-20°C to 70°C.
