| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

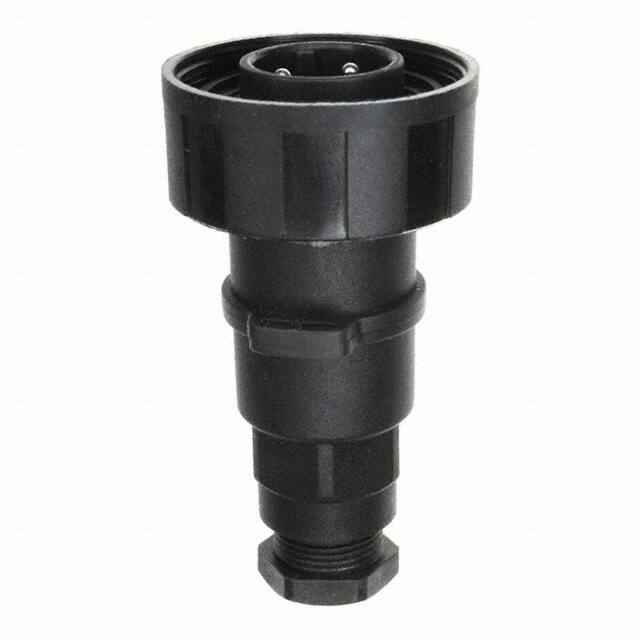

The Bulgin PX0731/P is a circular connector plug from the Standard Buccaneer series, designed for power applications. It has a male pin configuration with 3 positions (2 power + PE) and uses screw termination for secure wire connections.
The connector is housed in a black polyamide (nylon) shell with glass filling, providing durability and a threaded fastening mechanism. It is rated for IP68 and IP69K ingress protection, making it suitable for harsh environments. The operating temperature range is -20°C to 70°C.
Electrical ratings include 10A current and 277V AC/DC. The connector is unshielded and features a backshell and coupling nut. It accepts cables with a diameter of 6.00mm to 8.00mm. The contact finish is nickel.
This plug is designed for free-hanging (in-line) mounting and mates with corresponding sockets. It is RoHS3 compliant and has a UL94 HB flammability rating. The Standard Buccaneer series offers reliable connectivity for industrial and commercial power distribution.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.39 | $25.39 |
| 10+ | $21.78 | $21.78 |
| 25+ | $20.44 | $20.44 |
| 50+ | $19.38 | $19.38 |
| 100+ | $18.60 | $18.60 |
| 250+ | $17.12 | $17.12 |
| 500+ | $16.70 | $16.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions (2 power + PE).
10A.
277V AC/DC.
Free hanging (in-line) mounting.
IP68 and IP69K, dust tight and waterproof.
Screw termination.
-20°C to 70°C.
