PX0728/S

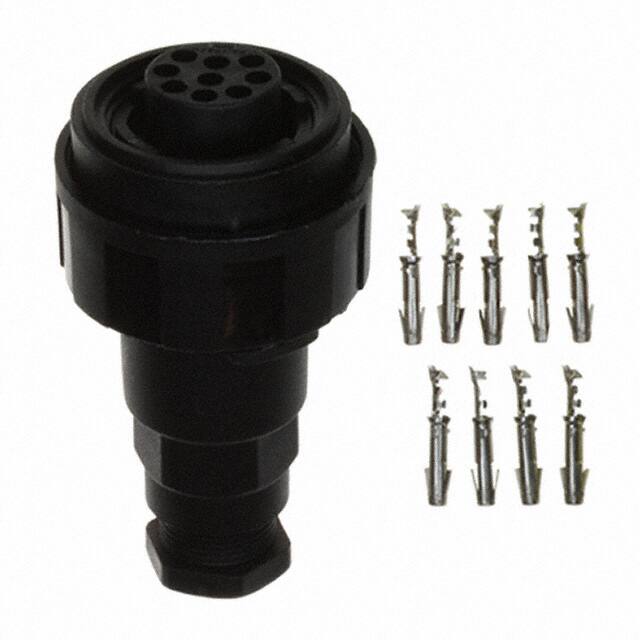

The PX0728/S is a 9-position power connector plug from the Bulgin Standard Buccaneer series. It is designed with female sockets featuring tin-plated contacts and crimp termination, providing a reliable connection for power applications. The plug offers a free-hanging inline mounting style with a threaded coupling mechanism, ensuring secure mating. Its shell is constructed from glass-filled polyamide (PA) nylon in black, rated UL94 HB for flammability. This connector is unshielded and is keyed to prevent misalignment during mating. It includes a backshell and coupling nut for enhanced cable strain relief and cable opening acceptance of 6.00mm to 8.00mm.

The PX0728/S is rated for 5A current and 150V AC/DC, with an operating temperature range of -20°C to 70°C. Its environmental sealing is rated IP68/IP69K, making it dust-tight, water-resistant, and waterproof to depths tested per industry standards. The connector meets marine severity level 1 salt mist corrosion testing per EN60068-2-52, suitable for demanding outdoor and marine environments. Key specifications include crimp termination for field assembly and compatibility with mating inline or panel mount sockets.

This connector is part of Bulgin's Standard Buccaneer series, which supports 2 to 25 contact configurations with various termination options. It is designed for easy assembly without special tools on screw terminal variants, though the crimp version may require basic crimping tools. The plug is typically used in industrial automation, power distribution, and harsh environment applications requiring a robust waterproof connection.
